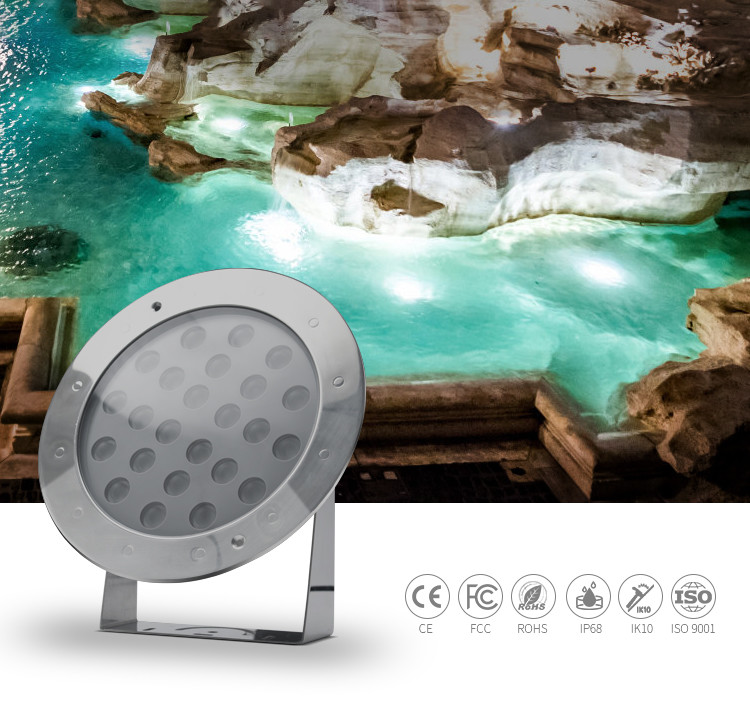

White Color 6500K Dimmable Led Underwater Lamp Pool Bulb 36W 12V 2
Years Warranty
Product details
1. VDE standard outlet: standard cable length is 1 meter.
2. Shinning angle : 30°, other options: 15°/45°/60°.
3. 8.0mmTempered glass transparent cover, thickness.
4. Led underwater lamp use 316L Stainless steel material, super
good anti-corrosion.
5. RGB external control and DMX512 control are the best selling
control in Heguang.
6. LED underwater spot light use 8.0mmTempered glass transparent
cover, thickness.
Specification
| HG-UL-36W-SMD-12V |
| Lamp paramater | Material | SS316L body+tempered glass cover+VDE rubber cable |
| length | Φ220×225mm |
| Input voltage | AC/DC12V |
| Constant Driver | yes |
| Over-current Protection | yes |
| Wattage | 36W±10% |
| Light lumen | 3000LM±10％ |
| Beam angle | 15°/30°/45°/60° |
| CCT | Pure White: 6500±10% Warm White:3000K±10% costomized |
|
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, RoHS,FCC,IP68,IK10 |
| Life-span | 50,000 hours |
| Warranty | 2Years |
| packing/ shipping | Lamp sizeInner box dimension | 230×230×118mm |
| N.W. / pc | 1750g |
| G.W. / pc | 1970g |
| Carton dimension | 480×245×500mm |
| Qty. / ctn. | 8PCS/CTN |
| G.W. / ctn. | 17.0Kg |
| test Site | LED Underwater light (Min) |
| Ambient temperature 28℃ | Ambient temperature 40℃ |
| Underwater test lighting time(Min) | 10 | 30 | 90 | 150 | 10 | 30 | 90 | 150 |
| Light source edge temperature(℃) | 49 | 50 | 51 | 51 | 60 | 61 | 63 | 63 |
Product Features
1. 316L Stainless steel material, super good anti-corrosion.
2. Nickel plated brass PG7 connector, IP68 waterproof.
3. Customized IP68 waterproof nickel plated brass design,good
anti-corrosion.
4. VDE waterproof cable with rubber sleeve,resistant voltage 2000V,
temperature resistance at -40℃ to 90℃.
5. RGB three-channel circuit design, universal RGB four-wire
external controller, using DC24V power input
Product Size
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. Lighting HG must be 8 hours aging test and provide 2 Years
warranty.
3. Pool bulb 12V finished products all passed 30 steps quality
inspection.
4. Good looking stamping SS316 rivet screws, more stable, never
fall off.
5. Good looking with rivet screw and cover nut assembly, longer
lifespan.
6. Light for swimming pool is IP68 structure waterproof, can long
time use under water.
LED underwater pool light all passed 30 steps quality control, 100%
waterproof at 10m depth,
8 hours LED agening test,100% inspection before deliver.
Application
(Conventional bracket) can be suitable for underwater bracket
fixing or (with clamp) water pipe binding installation method,
widely used in garden pool, square pool, hotel pool, fountain and
other underwater lighting.
Some tips for you
Q1:How to choose the right LED energy saving lamps?
Low watage with high Lumen. This will save more electricity bill.
Q2: What is the advantages of LED?
Environmental friendly, Energy saving and Long lifespan.
Q3:The key factor that influence LED lifespan.
Temperature: It requires that junction temperature of LED chip
should be ≤120℃, so the center temperature
at the LED bottom of light board should be ≤ 80 ℃.
Q4: Why choose us?
1. All lamps are self-developed patent products.
2. High quality driver of lamps to ensure the long lifespan.
3. Lower wattage with high Lumen and more energy-efficient.
4. IP68 structure waterproof without glue, and lamps disspate heat
through structure.
5. According to the LED characteristic, the center temperature at
the LED bottom of light board must be controlled strictly( ≤ 80 ℃).
6. All products have passed CE, ROHS, FCC, IP68, and our Par56 pool
light have got UL certification.
7. All products need to pass 30 steps QC inspection, the quality
has the guarantee, and the faulty rate is less than three per
thousand .
