External control 3W Led reflector led lamp IP68 waterproof pool
lamp
Product details
1. VDE standard outlet: standard cable length is 1 meter.
2. Shinning angle : 30°, other options: 15°/45°/60°.
3. 8.0mmTempered glass transparent cover, thickness.
4. Grounding fixing method default: aluminum grounding pole
(plastic grounding pole optional).
5. RGB external control and DMX512 control are the best selling
control in Heguang.
Product Features
1. 316L Stainless steel material, super good anti-corrosion.
2. Pool lamp adjustable angle, adding bracket means never loose.
3. CREE brand lamp beads, SMD3030 and SMD3535, super high
brightness, high display means Ra≥80
4. Thickened aluminum board :2-3mm, better heat dissipation with
the conductivity :2.0W/(m.k).
5. Low voltage constant current power supply drive, efficiency ＞90%
, make sure the LED is constant current working,
the input voltage change no effect with the LED lifespan.
Specification
| HG-UL-3W-SMD-RGB-X-12V |
| Lamp paramater | Material | SS316L body+tempered glass cover+VDE rubber cable |
| length | Φ98×118mm |
| Input voltage | DC12V |
| Constant Driver | yes |
| Over-current Protection | yes |
| Wattage | 3W±1W |
| Light lumen | 90LM±10％ |
| Beam angle | 15°/30°/45°/60° |
| Color: | RGB(DMX512/External /Wifi control |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, RoHS,FCC,IP68,IK10 |
| Life-span | 50,000 hours |
| Warranty | 2Years |
| RGB Controller | LED Underwater lights | 1.DMX512 (can get the RGB color changing synchronous) 5 wires |
| 2, external controller (can get the RGB color changing synchronous)
4 wires |
| Test position | LED Underwater light (Min) |
| Working temperature 28℃ | Working temperature 40℃ |
| Underwater test time(Min) | 480 | 480 |
| LED edge temperature(℃) | 60 | 70 |
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. Finished products all passed 30 steps quality inspection.
3. IP68 structure waterproof ,can long time use under water.
4. Good looking stamping SS316 rivet screws,more stable ,never fall
off.
5. Good looking with rivet screw and cover nut assembly,longer
lifespan.
6. IP68 waterproof pool lamp must be 8 hours aging test and provide
2 Years warranty.
3W Led reflector all passed 30 steps quality control , 100%
waterproof at 10m depth,8 hours LED agening test,
100% inspection before deliver.
Application
(Conventional bracket) can be suitable for underwater bracket
fixing or (with clamp) water pipe binding installation method, widely used in garden pool, square pool, hotel pool, fountain and
other underwater lighting.

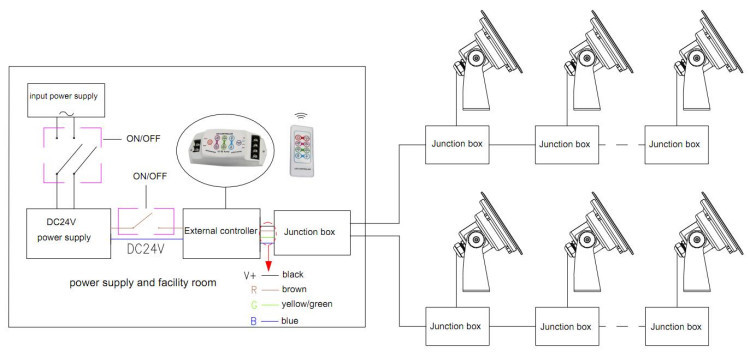

Connection&Installtion
Packing List
| Item | HG-UL-3W-SMD-RGB-X-12V |
| Product weight | 510G/PCS |
| color box size | 625×380×325mm |
| Carton/pcs | 50pcs/Carton |
| Carton size | 610x410x410mm |
| Carton weight | 28KG/CTN |
FAQ
1. Q: When can I get the price?
A: We usually quote within 24 hours after got your inquiry. If you
are urgent to get the prices,
please call us or tell us your email, so that we will give priority to your inquiry.
2. Q: Do you accept the OEM&ODM?
A: Yes, OEM or ODM service are available.
3. Q: May I get samples to test quality and how long can I get
them?
A: Yes, quote of sample is same as normal order and can be ready in
3-5 days.
4. Q: What is the MOQ?
A: NO MOQ, the more you order ,the cheaper price you will get.
5. Q: Can you accept small trial order?
A: Yes, no matter large or small trial order, your needs will get
our full attention. It’s our great honor to cooperate with you.
6.Q: How many pieces of lamp can connect with one RGB synchronous
controller?
A: It doesn’t depend on the power. It depend on quantity, maximum
is 20pcs. If it plus the amplifier, it can plus 8pcs amplifier.
Totally the quantity of led par56 lamp is 100pcs. And RGB
Synchronous controller is 1 pcs, amplifier is 8pcs.
