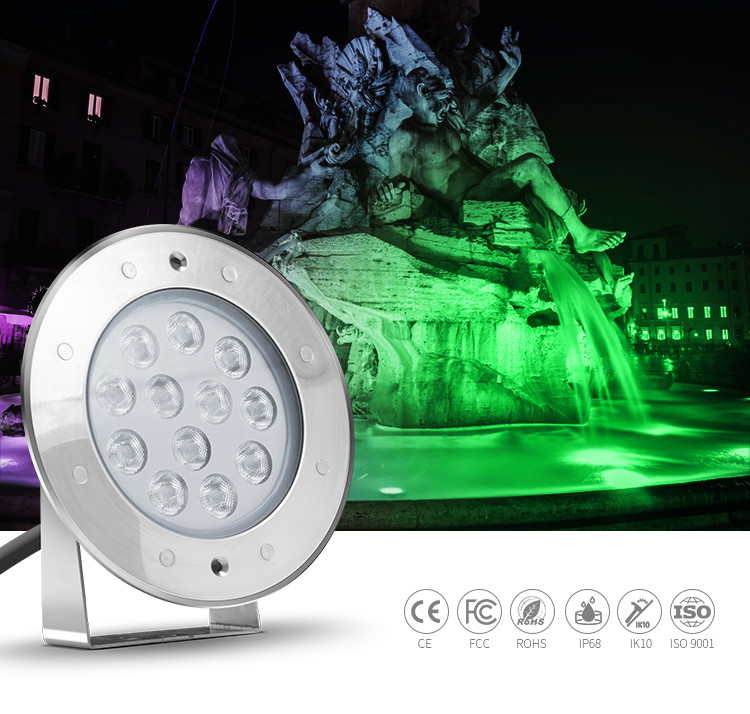

Waterproof 9W Pool Light Led Bulb Inground Led Bulb IP68 White
Color
Product details
1. LED working Voltage:
2. Private Mode products,Support ODM&OEM.
3. Shinning angle : 30°, other options: 15°/45°/60°.
4. IP68 pool light bulb with VDE standard outlet: standard cable
length is 1 meter.
5. Material: 316L Stainless steel +Tempered glass cover cover, no
yellowing or dazzling for two years.
6. Grounding fixing method default: aluminum grounding pole
(plastic grounding pole optional)
Specification
| HG-UL-9W-SMD-12V |
| Lamp paramater | Material | SS316L body+tempered glass cover+VDE rubber cable |
| length | Φ150×156.5mm |
| Input voltage | AC/DC12V |
| Constant Driver | yes |
| Over-current Protection | yes |
| Wattage | 9±1W |
| Light lumen | 850LM±10％ |
| Beam angle | 15°/30°/45°/60° |
| CCT | Pure White: 6500±10% Warm White:3000K±10% costomized |
|
| Wave Length (nm) | R: 620-630nm |
| G:515-525nm |
| B:460-470nm |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, RoHS,FCC,IP68,IK10 |
| Life-span | 50,000 hours |
| Warranty | 2Years |
| test Site | LED Underwater light (Min) |
| Ambient temperature 28℃ | Ambient temperature 40℃ |
| Underwater test lighting time(Min) | 10 | 30 | 90 | 150 | 10 | 30 | 90 | 150 |
| Light source edge temperature(℃) | 43 | 50 | 52 | 59 | 45 | 58 | 62 | 68 |

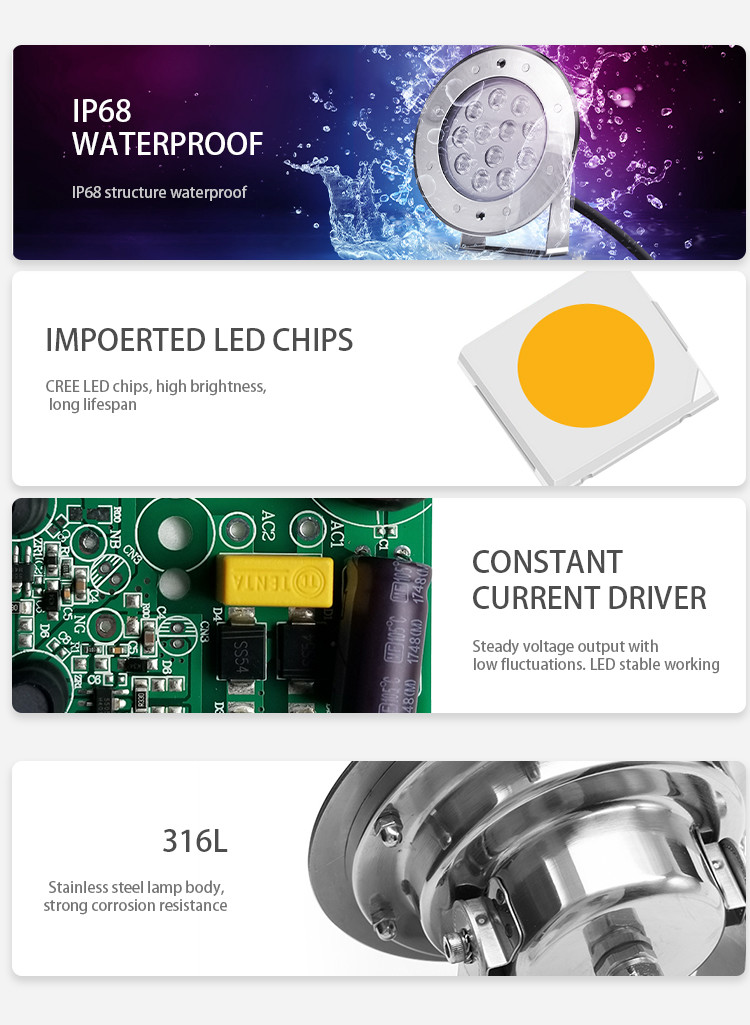

Product Features
1. Pool light led bulb can adjustable angle, adding bracket means
never loose.
2. CREE brand lamp beads, super high brightness, high display means
Ra≥80.
3. Integrated bead lens with uniform lighting, no dazzling,light
transmittance ＞85%.
4. 316L Stainless steel material, strong anti-corrosion
ability/SS316L material, super good anti-corrosion.
5. IK10 8mm transparent tempered glass, light transmittance ＞90%,
no effect with the LED color temperature.
Product Size
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. Finished products all passed 30 steps quality inspection.
3. Good looking stamping SS316 rivet screws, more stable ,never
fall off.
4. Good looking with rivet screw and cover nut assembly, longer
lifespan.
5. IP68 structure waterproof, can long time use under water.
6. inground led bulb must be 8 hours aging test and provide 2 Years
warranty.
LED underwater pool light all passed 30 steps quality control ,
100% waterproof at 10m depth,
8 hours LED agening test,100% inspection before deliver.
Application
(Conventional bracket) can be suitable for underwater bracket
fixing or (with clamp) water pipe binding installation method,
widely used in garden pool, square pool, hotel pool, fountain and
other underwater lighting.
FAQ
1. Q: When can I get the price?
A: We usually quote within 24 hours after got your inquiry. If you
are urgent to get the prices,
please call us or tell us your email so that we will give priority
to your inquiry.
2. Q: Do you accept the OEM&ODM?
A: Yes, OEM or ODM service are available.
3. Q: May I get samples to test quality and how long can I get
them?
A: Yes, quote of sample is same as normal order and can be ready in
3-5 days.
4. Q: What is the MOQ?
A: NO MOQ, the more you order ,the cheaper price you will get.
5. Q: Can you accept small trial order?
A: Yes, no matter large or small trial order, your needs will get
our full attention. It’s our great honor to cooperate with you.
6.Q: How many pieces of lamp can connect with one RGB synchronous
controller?
A: It doesn’t depend on the power. It depend on quantity, maximum
is 20pcs. If it plus the amplifier, it can plus 8pcs amplifier.
Totally the quantity of led par56 lamp is 100pcs. And RGB
Synchronous controller is 1 pcs, amplifier is 8pcs.
