1. Private Mode products,Support ODM&OEM.
2. Shinning angle : 30°,other options: 15°/45°/60°
3. Underwater Spot light with 8.0mmTempered glass transparent
cover, thickness.
4. RGB external control and DMX512 control are the best selling
control in Heguang.
5. Material: 316L Stainless steel +Tempered glass cover cover, no
yellowing or dazzling for two years.
6. Grounding fixing method default: aluminum grounding pole
(plastic grounding pole optional).
| HG-UL-5W-SMD-RGB-X |

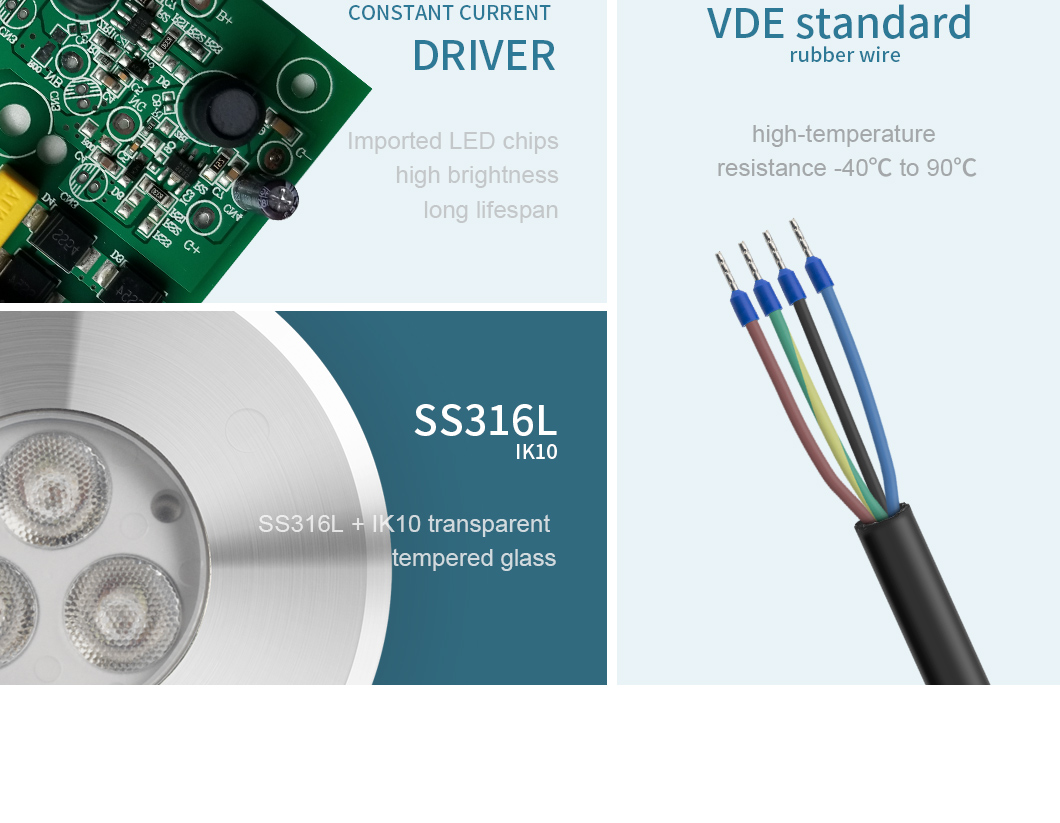

| Lamp parameter | Material | SS316L body+tempered glass cover+VDE rubber cable |
| length | Φ98×118mm |
| Input voltage | DC24V |
| Constant Driver | yes |
| Over-current Protection | yes |
| Wattage | 5W±1W |
| Light lumen | 130LM±10％ |
| Beam angle | 15°/30°/45°/60° |
| Color: | RGB(DMX512/External /Wifi control) |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, RoHS,FCC,IP68,IK10 |
| Life-span | 50,000 hours |
| Warranty | 2Years |
| RGB Controller | LED Underwater lights | 1.DMX512 (can get the RGB color changing synchronous) 5 wires |
| 2, external controller (can get the RGB color changing synchronous)
4 wires |
| Test position | LED Underwater light (Min) |
| Working temperature 28℃ | Working temperature 40℃ |
| Underwater test time(Min) | 480 | 480 |
| LED edge temperature(℃) | 53 | 62 |
LED underwater pool light all passed 30 steps quality control, 100%
waterproof at 10m depth,8 hours LED agening test, 100% inspection before deliver.

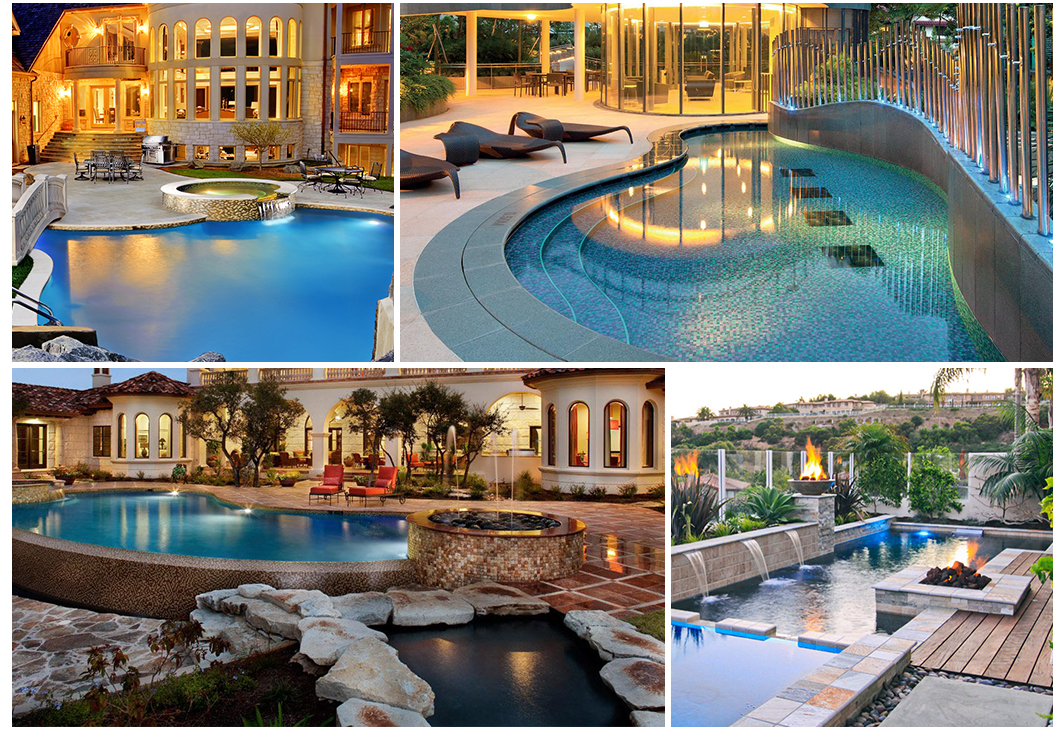

Application
(Conventional bracket) can be suitable for underwater bracket
fixing or (with clamp) water pipe
binding installation method, widely used in garden pool, square
pool, hotel pool, fountain and other
underwater lighting.
FAQ
1. Q: When can I get the price?
A: We usually quote within 24 hours after got your inquiry. If you
are urgent to get the prices,
Please call us or tell us your email so that we will give priority
to your inquiry.
2. Q: Do you accept the OEM&ODM?
A: Yes, OEM or ODM service are available.
3. Q: May I get samples to test quality and how long can I get
them?
A: Yes, quote of sample is same as normal order and can be ready in
3-5 days.
4. Q: What is the MOQ?
A: NO MOQ, the more you order ,the cheaper price you will get.
5. Q: Can you accept small trial order?
A: Yes, no matter large or small trial order, your needs will get
our full attention. It’s our great honor to cooperate with you.
6.Q: How many pieces of lamp can connect with one RGB synchronous
controller?
A: It doesn’t depend on the power. It depend on quantity, maximum
is 20pcs. If it plus the amplifier, it can plus 8pcs amplifier.
Totally the quantity of led par56 lamp is 100pcs. And RGB
Synchronous controller is 1 pcs, amplifier is 8pcs.
