Product details

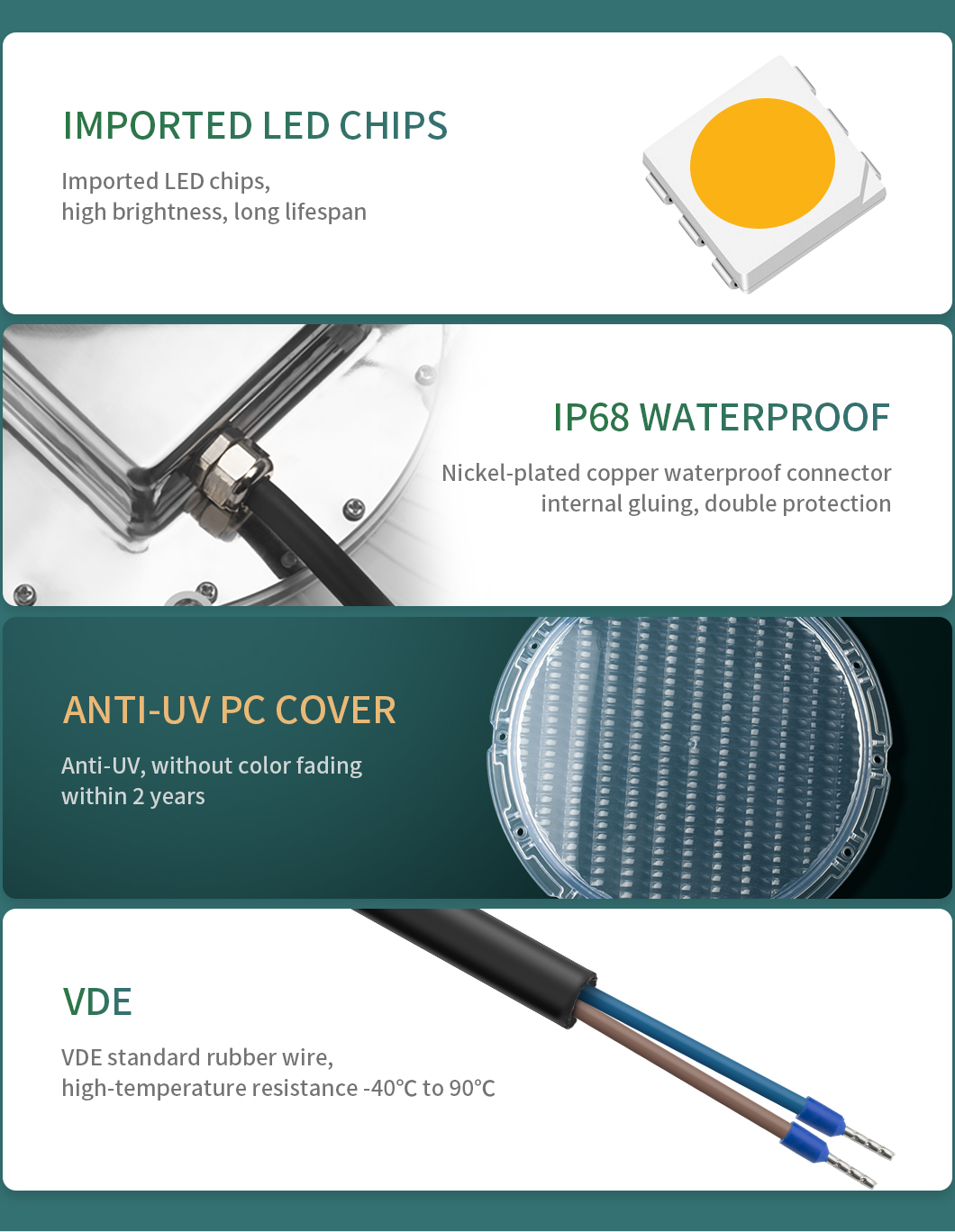

1. Anti-UV PC cover, excellent yellowing resistance, and durable
2. 316L Stainless steel material base shell, great heat-dissipation
and corrosion-resistant.
3. Engineering ABS material+ANTI UV PC cover, no yellowing or
dazzling for two years.
4. High light LED Chips, low light degradation and long lifespan,
CRI>80
5. IP68 Structure waterproof, without resin-filled.
6. Patented 4-layers waterproof structure, more stable than
resin-filled pool lights.
Product Features
1. Constant current driver, comply with CE & EMC standard.
2. Copper nickel-plated PG7 waterproof connector + VDE waterproof
wire, pure copper core wir
3. 8mm thickness bracket with screws fixation at 2 end,more
fastness.
4. 8 hours aging testing, 30 steps quality inspections, assure the
great quality pool light.
5. Constant current driver, comply with CE & EMC standard.
6. 2-3MM aluminum light board for excellent heat dissipation,
2.0W/(m.k) Thermal conductivity.
Specification

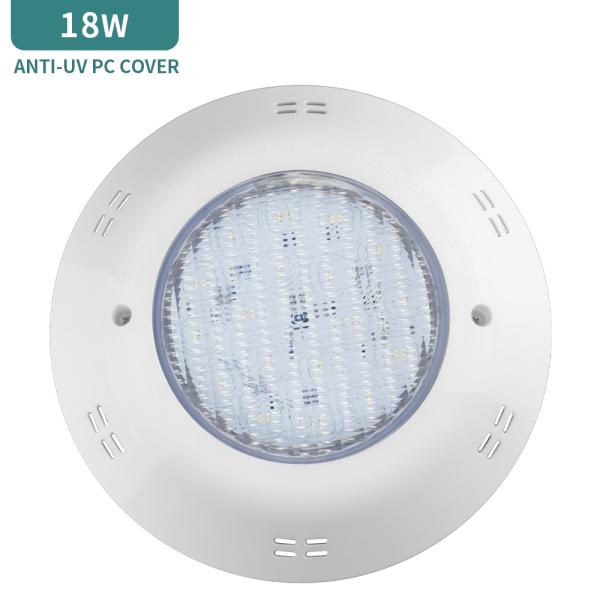

| HG-PL-18X1W-C2 |
| Lamp parameter | Material | ABS + Transparent PC cover |
| Light dimension | Φ290×49.5mm |
| Input voltage | AC12/DC12V |
| Wattage | 19W±10％ |
| Light lumen | 1500LM±10％ |
| Halogen replacement | 125W |
| Beam angle | 120° |
| BASE | Wire out |
| CCT | Pure White: 6500±10% Warm White:3000K±10% costomized/RGB |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, ROHS,FCC, IP68,VDE |
| Life-span | 50,000 hours |
| Warranty | 2 Years |
| !!! Remarks | Connect coil transformer | must be coil transformer |
| Waterproof ring of housing | must do right to get IP68 |
| Test position | LED Surface Mounted Swimming Pool Light(Min) |
| Working temperature 28℃ | Working temperature 40℃ |
| Underwater test time(Min) | 480 | 480 |
| LED edge temperature(℃) | 65 | 70 |
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. waterproof led lights for pools must be 8 hours aging test.
3. Spa pool lights Finished products all passed 30 steps quality
inspection
4. IP68 structure waterproof ,can long time use underwater.
5. Constant current driver, comply with CE & EMC standard.
Application

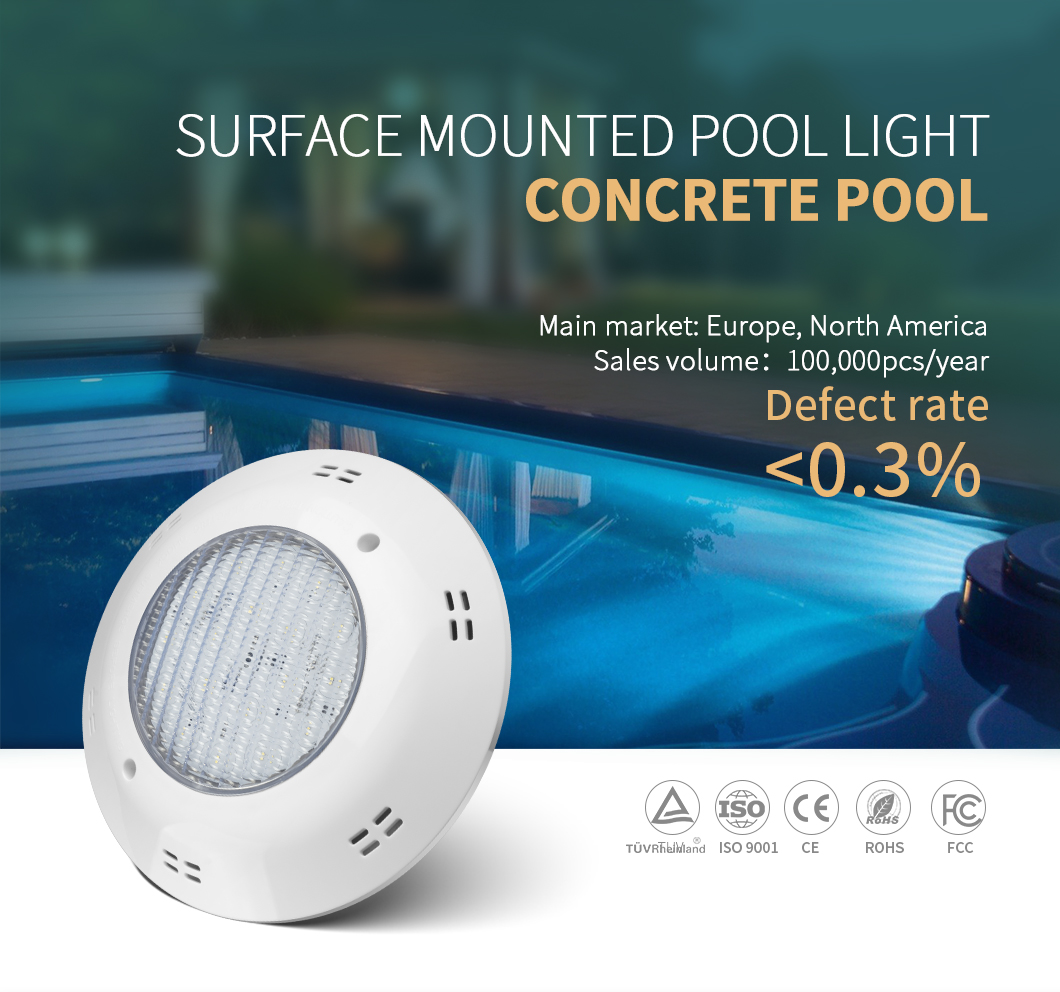

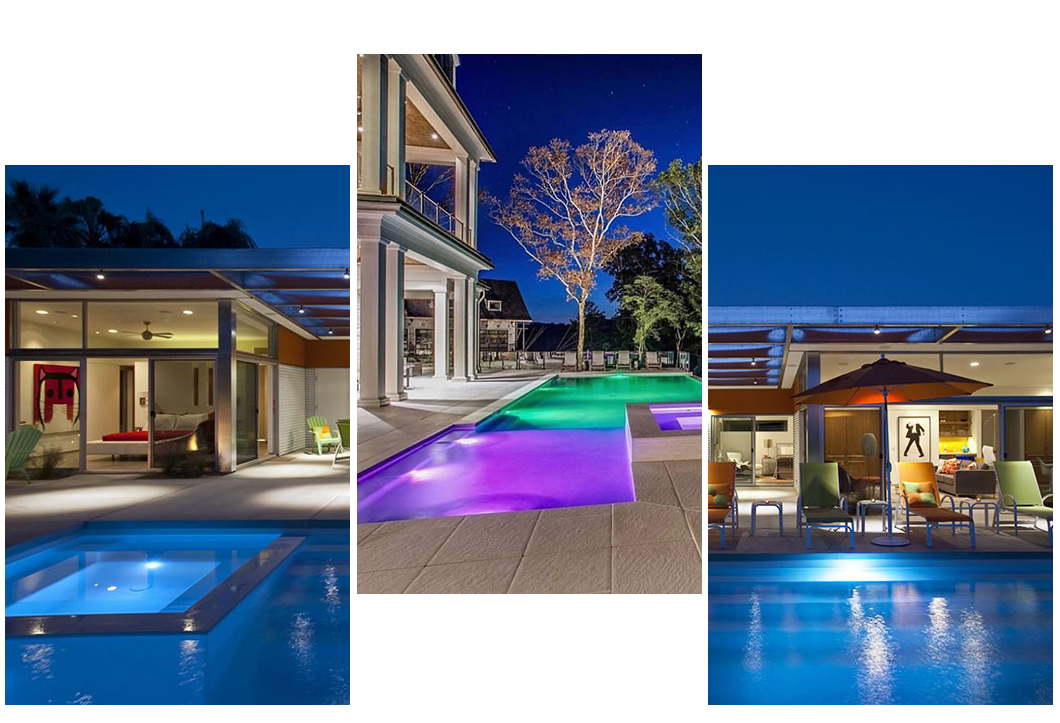

Surface mounted led spotlights application: Concrete pool ,Vinyl
pool ,Outdoor Swimming Pool.family pool,
hotel pool, underwater etc.
Some tips for you
Q1: How to choose the right LED energy saving lamps?
Low watage with high Lumen. This will save more electricity bill.
Q2: What is the advantages of LED?
Environmental friendly, Energy saving and Long lifespan
Q3: The key factor that influence LED lifespan.
Temperature: It requires that junction temperature of LED chip
should be ≤120℃,
so the center temperature at the LED bottom of light board should
be ≤ 80 ℃.
Q4: Why choose us?
1. Lower wattage with high Lumen and more energy-efficient.
2. All lamps are self-developed patent products.
3. IP68 structure waterproof without glue, and lamps disspate heat
through structure.
4. According to the LED characteristic, the center temperature at
the LED bottom of light board
must be controlled strictly( ≤ 80 ℃).
5. High quality driver of lamps to ensure the long lifespan.
6. All products have passed CE, ROHS, FCC, IP68, and our Par56 pool
light have got UL certification.
7. All products need to pass 30 steps QC inspection, the quality
has the guarantee, and the faulty rate
is less than three per thousand .
