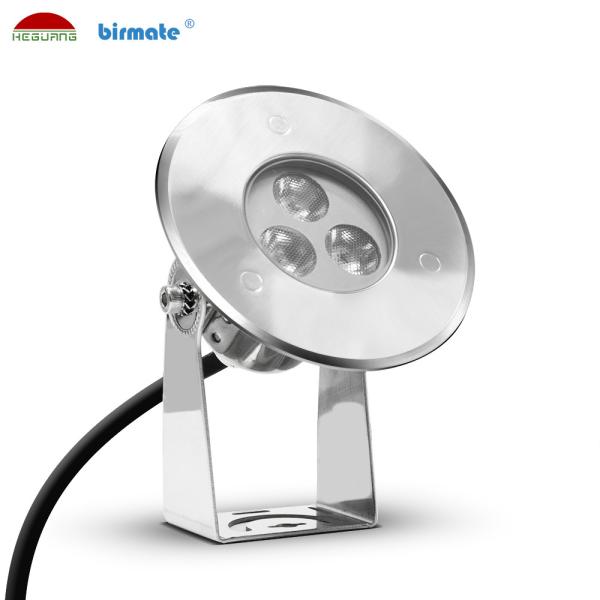

Colorful 5W low voltage spa lights,12v RGB color ip68 waterproof
light lamps
Product details
1. Working Voltage: IP Rank: IP68 waterproof.
2. Material: 316L Stainless steel +Tempered glass cover cover,no
yellowing or dazzling for two years.
3. 316L Stainless steel material, super good anti-corrosion.
4. Grounding fixing method default: aluminum grounding pole
(plastic grounding pole optional).
5. RGB external control and DMX512 control are the best selling
control in Heguang.
6. IP Rate: IP68 Structural waterproof.
Product Features
1. Low voltage underwater led lights adjustable angle, adding
bracket means never loose.
2. 316L Stainless steel material ,strong anti-corrosion ability.
3. Integrated bead lens with uniform lighting ,no dazzling,light
transmittance ＞85%.
4. High quality wafer chip Low light decay / long life / low energy
consumption
5. Underwater spa lights with VDE waterproof cable with rubber
sleeve,resistant voltage 2000V,temperature resistance at -40℃ to
90℃.
Specification
| HG-UL-5W(SMD)-RGB-D(24V)/HG-UL-5W(SMD)-X/Wifi(24V)/HG-UL-5W(SMD)-N(24V) |
| Lamp paramater | Material | SS316L body+tempered glass cover+VDE rubber cable |
| length | Φ98×118mm |
| Input voltage | DC24V |
| Constant Driver | yes |
| Over-current Protection | yes |
| Wattage | 5W±1W Epistar |
| Light lumen | 130LM±10％ |
| Beam angle | 15°/30°/45°/60° |
| Color: | RGB(DMX512/External /Wifi control/automatic changing) |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, RoHS,FCC,IP68,IK10 |
| Life-span | 50,000 hours |
| Warranty | 2Years |
| RGB Controller | LED Underwater lights | 1.DMX512 (can get the RGB color changing synchronous) 5 wires 2,
external controller (can get the RGB color changing synchronous) 4
wires 3.RGB synchronous control design,2 wires connection 4,
automatic changing 2 wires |
|
| Test position | LED Underwater light (Min) |
| Working temperature 28℃ | Working temperature 40℃ |
| Underwater test time(Min) | 480 | 480 |
| LED edge temperature(℃) | 53 | 62 |
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. 24v underwater led lights must be 8 hours aging test and provide
2 Years warranty.
3. Finished products all passed 30 steps quality inspection.
4. Good looking stamping SS316 rivet screws,more stable, never fall
off.
5. Good looking with rivet screw and cover nut assembly, longer
lifespan.
6. IP68 structure waterproof ,can long time use under water.
LED underwater pool light all passed 30 steps quality control ,
100% waterproof at 10m depth ,8 hours LED agening test,100%
inspection before deliver.
Application
(Conventional bracket) can be suitable for underwater bracket
fixing or (with clamp) water pipe binding installation method,
widely used in garden pool, square pool, hotel pool, fountain and
other underwater lighting.
Connection&Installtion
FAQ
1. Q: When can I get the price?
A: We usually quote within 24 hours after got your inquiry. If you
are urgent to get the prices,
please call us or tell us your email so that we will give priority
to your inquiry .
2. Q: Do you accept the OEM&ODM?
A: Yes, OEM or ODM service are available.
3. Q: May I get samples to test quality and how long can I get
them?
A: Yes, quote of sample is same as normal order and can be ready in
3-5 days.
4. Q: What is the MOQ?
A: NO MOQ, the more you order ,the cheaper price you will get
5. Q: Can you accept small trial order?
A: Yes, no matter large or small trial order, your needs will get
our full attention. It’s our great honor to cooperate with you.
6.Q: How many pieces of lamp can connect with one RGB synchronous
controller?
A: It doesn’t depend on the power. It depend on quantity, maximum
is 20pcs. If it plus the amplifier, it can plus 8pcs amplifier.
Totally the quantity of led par56 lamp is 100pcs. And RGB
Synchronous controller is 1 pcs, amplifier is 8pcs.
