Product details
1. Private Mode products, Support ODM&OEM.
2. 316L Stainless steel material, super good anti-corrosion.
3. Material: 316L Stainless steel +Tempered glass cover cover, no
yellowing or dazzling for two years.
4. 8.0mm Tempered glass transparent cover, thickness.
5. RGB external control and DMX512 control are the best selling
control in Heguang.
Product Features
1. Swimming pool lights adjustable angle, adding bracket means
never loose.
2. CREE brand lamp beads, super high brightness, high display means
Ra≥80,
3. Mordern swimming pool lights with 316L Stainless steel material,
strong anti-corrosion ability.
4. 316L Stainless steel material ,super good anti-corrosion.
5. Integrated bead lens with uniform lighting, no dazzling, light
transmittance ＞85%.
6. High quality wafer chip Low light decay / long life / low energy
consumption.
| HG-UL-18W-SMD |
| Lamp parameter | Material | SS316L body+tempered glass cover+VDE rubber cable |
| length | Φ150×156.5mm |
| Input voltage | DC24V |
| Constant Driver | yes |
| Over-current Protection | yes |
| Wattage | 18W±10% CREE |
| Light lumen | 1600LM±10％ |
| Beam angle | 15°/30°/45°/60° |
| CCT | Pure White: 6500±10% Warm White:3000K±10% costomized |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, RoHS,FCC,IP68,IK10 |
| Life-span | 50,000 hours |
| Warranty | 2Years |
| Test position | LED Underwater light (Min) |
| Working temperature 28℃ | Working temperature 40℃ |
| Underwater test time(Min) | 480 | 480 |
| LED edge temperature(℃) | 70 | 73 |
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. Swimming pool lights 6500K must be 8 hours aging test and
provide 2 Years warranty.
3. Finished products all passed 30 steps quality inspection
4. Good looking stamping SS316 rivet screws,more stable, never fall
off
5. Good looking with rivet screw and cover nut assembly, longer
lifespan.
6. IP68 structure waterproof ,can long time use under water.
LED underwater pool light all passed 30 steps quality control, 100%
waterproof at 10m depth ,8 hours LED aging test,100% inspection
before deliver.

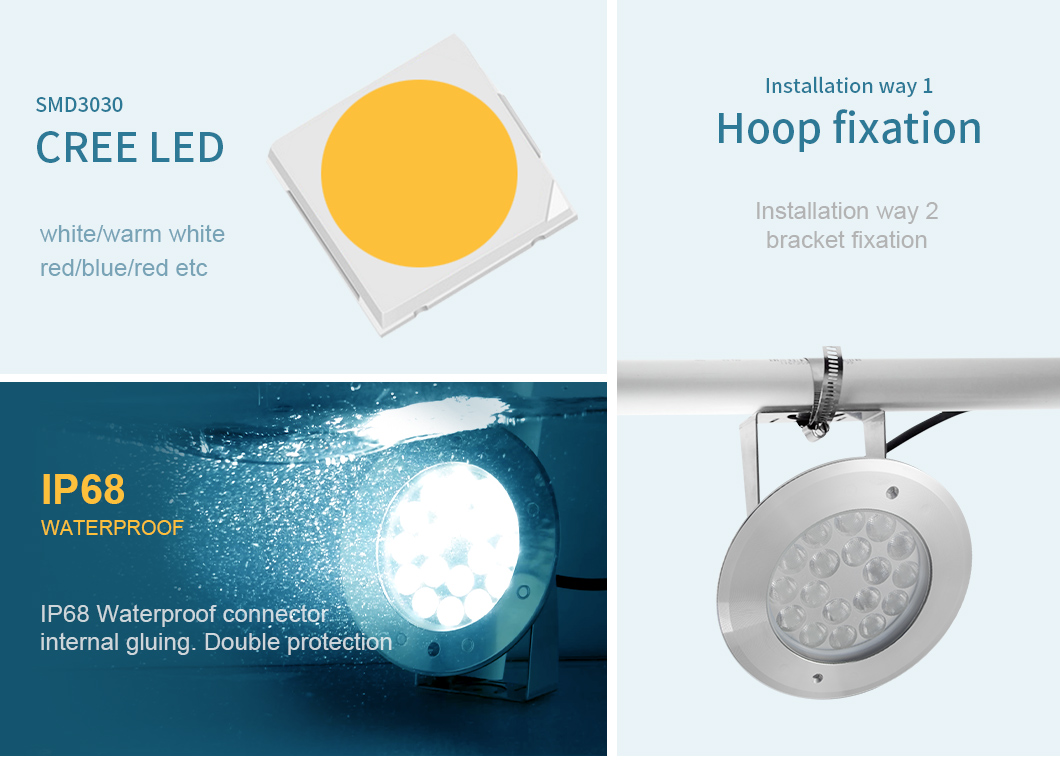

Application
(Conventional bracket) can be suitable for underwater bracket
fixing or (with clamp) water pipebinding installation method,
widely used in garden pool, square pool, hotel pool, fountain and
other underwater lighting.
FAQ
1. Q: When can I get the price?
A: We usually quote within 24 hours after got your inquiry. If you
are urgent to get the prices,
please call us or tell us your email so that we will give priority
to your inquiry .
2. Q: Do you accept the OEM&ODM?
A: Yes,OEM or ODM service are available.
3. Q: May I get samples to test quality and how long can I get
them?
A: Yes, quote of sample is same as normal order and can be ready in
3-5 days.
4. Q: What is the MOQ?
A: NO MOQ ,the more you order ,the cheaper price you will get
5. Q: Can you accept small trial order?
A: Yes, no matter large or small trial order, your needs will get
our full attention. It’s our great honor to cooperate with you.
6.Q: How many pieces of lamp can connect with one RGB synchronous
controller?
A: It doesn’t depend on the power. It depend on quantity, maximum
is 20pcs. If it plus the amplifier, it can plus 8pcs amplifier.
Totally the quantity of led par56 lamp is 100pcs. And RGB
Synchronous controller is 1 pcs, amplifier is 8pcs.
