IP68 Waterproof 24V 24W Underwater LED Spotlights,316L Stainless
Steel Underwater Pool Light
Product details
1. IP Rate: IP68 Structural waterproof.
2. Shinning angle : 30°,other options: 15°/45°/60°
3. VDE standard outlet: standard cable length is 1 meter.
4. Material: 316L Stainless steel +Tempered glass cover cover,no
yellowing or dazzling for two years.
5. Grounding fixing method default: aluminum grounding pole
(plastic grounding pole optional).

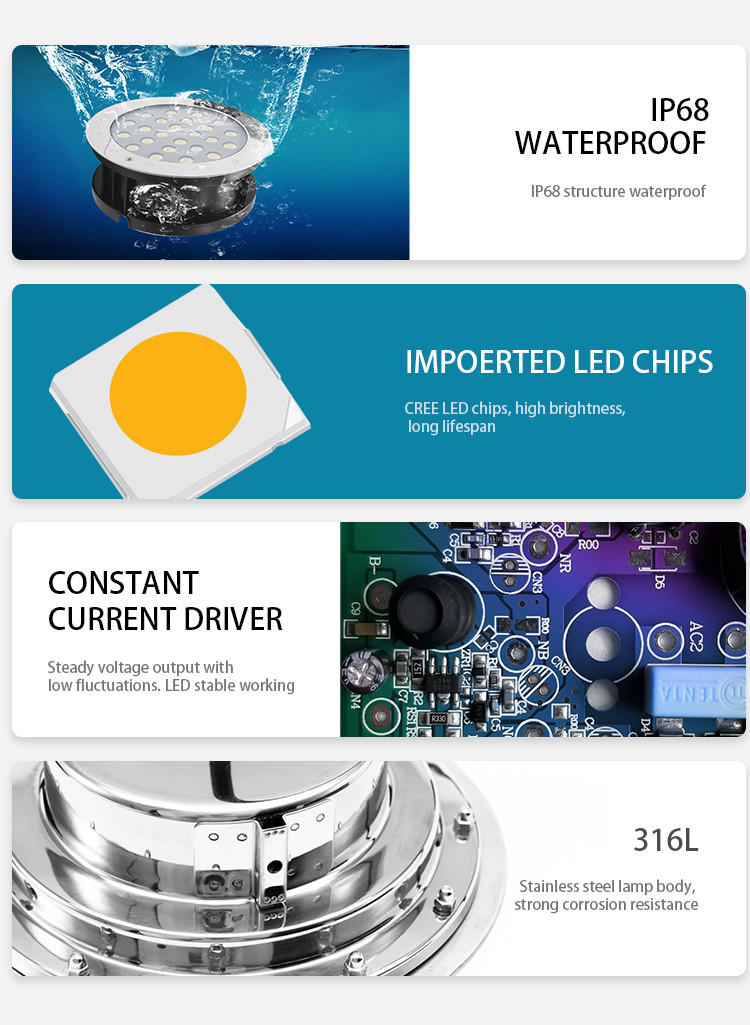

Product Features
1. 316L Stainless steel material ,strong anti-corrosion ability.
2. High quality wafer chip Low light decay / long life / low energy
consumption.
3. Integrated bead lens with uniform lighting, no dazzling, light
transmittance ＞85%.
4. Super bright SMD3030 and SMD3535, RA ≥80, gold wire welding, EMC
and ceramic
make the heat dissipation faster, assure the longer lifespan of
LED.
5. Low voltage constant current power supply drive, efficiency
＞90%, make sure the LED
is constant current working,the input voltage change no effect with
the LED lifespan.
Specification
| HG-UL-24W-SMD-R | | Lamp paramater | Material | SS316L body+tempered glass cover+VDE rubber cable | | length | Φ220×93mm | | Input voltage | DC24V | | Constant Driver | yes | | Over-current Protection | yes | | Wattage | 24W±10% CREE | | Light lumen | 2200LM±10％ | | Beam angle | 15°/30°/45°/60° | | CCT | Pure White: 6500±10% Warm White:3000K±10% costomized | | Specifics | Operating Temperature (℃) | -20~40℃ | | IP Rating | IP68 | | Certificate | CE, RoHS,FCC,IP68,IK10 | | Life-span | 50,000 hours | | Warranty | 2Years | | Test position | LED Underwater light (Min) | | Working temperature 28℃ | Working temperature 40℃ | | Underwater test time(Min) | 480 | 480 | | LED edge temperature(℃) | 48 | 62 |
|
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. Finished products all passed 30 steps quality inspection.
3. Good looking stamping SS316 rivet screws,more stable, never fall
off.
4. Good looking with rivet screw and cover nut assembly, longer
lifespan.
5. IP68 structure waterproof, can long time use under water.
6. Led Light underwater must be 8 hours aging test and provide 2
Years warranty.
LED underwater pool light all passed 30 steps quality control, 100%
waterproof at 10m depth ,
8 hours LED agening test,100% inspection before deliver.
Application
(Conventional bracket) can be suitable for underwater bracket
fixing or (with clamp) water pipe binding
installation method, widely used in garden pool, square pool, hotel
pool, fountain and other underwater lighting.
Packing List
| Item | HG-UL-24W-SMD-R |
| Product weight | 900G/PCS |
| color box size | 625×380×325mm |
| Carton/pcs | 50pcs/Carton |
| Carton size | 610x410x410mm |
| Carton weight | 28KG/CTN |
FAQ
1. Q: When can I get the price?
A: We usually quote within 24 hours after got your inquiry. If you
are urgent to get the prices,
please call us or tell us your email so that we will give priority
to your inquiry.
2. Q: Do you accept the OEM&ODM?
A: Yes, OEM or ODM service are available.
3. Q: May I get samples to test quality and how long can I get
them?
A: Yes, quote of sample is same as normal order and can be ready in
3-5 days.
4. Q: What is the MOQ?
A: NO MOQ ,the more you order, the cheaper price you will get.
5. Q: Can you accept small trial order?
A: Yes, no matter large or small trial order, your needs will get
our full attention.
It’s our great honor to cooperate with you.
6.Q: How many pieces of lamp can connect with one RGB synchronous
controller?
A: It doesn’t depend on the power. It depend on quantity, maximum
is 20pcs.
If it plus the amplifier, it can plus 8pcs amplifier. Totally the
quantity of led par56 lamp is 100pcs.
And RGB Synchronous controller is 1 pcs, amplifier is 8pcs.
