1. Lamp succeeded in the IES and Temperature rise test
2. The whole lamp made of 316L stainless steel, strong
corrosion-resistance, can be used in salty water.
3. Hayward pool light use Imported highlight CREE LED chip,
CRI>80. Low light degradation and long lifespan.
4. IP68 Structure waterproof, all products succeeded in 10m deep
water testing before delivery.
5. Led pool lighting is used for pond, pool, waterfall.
6. Pool underwater light adjustable angle led underwater light for pool
7. 2mm aluminum light board for excellent heat dissipation,
2.0W/(m.k) Thermal conductivity.
8. VDE standard rubber wire, connected with IP68 nickel-plated
copper connector.
9. 8 hours aging testing, 30 steps quality inspections, assure the
great quality pool light.

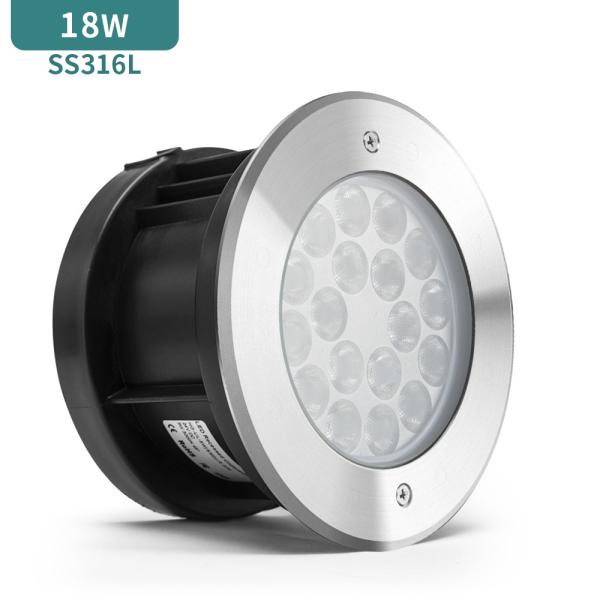

| HG-UL-18W-SMD-R |
| Lamp parameter | Material | SS316L body+tempered glass cover+VDE rubber cable |
| length | Φ150×87.5mm |
| Input voltage | DC24V |
| Constant Driver | yes |
| Over-current Protection | yes |
| Wattage | 18W±10% |
| Light lumen | 1600LM±10％ |
| Beam angle | 15°/30°/45°/60° |
| CCT | Pure White: 6500±10% Warm White:3000K±10% costomized |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, RoHS,FCC,IP68,IK10 |
| Life-span | 50,000 hours |
| Warranty | 2Years |
| Test position | LED Underwater light (Min) |
| Working temperature 28℃ | Working temperature 40℃ |
| Underwater test time(Min) | 480 | 480 |
| LED edge temperature(℃) | 70 | 73 |
| Underwater test time(Min) | 480 | 480 |
| LED edge temperature(℃) | 63 | 73 |
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. Finished products all passed 30 steps quality inspection
3. Good looking stamping SS316 rivet screws, more stable, never
fall off.
4. Good looking with rivet screw and cover nut assembly, longer
lifespan.
5. Pentair led pool light must be 8 hours aging test and provide 2
Years warranty.
6. Thickened aluminum board :2-3mm, better heat dissipation with
the conductivity :2.0W/(m.k).
LEDunderwater pool light all passed 30 steps quality control , 100%
waterproof at 10m depth ,8 hours LED aging test,100% inspection before deliver.
Application
Lights swimming pool widely used in cement swimming pools, hot
spring pools, garden pools and other underwater lighting.
FAQ
1.How to get a sample?
-Based on the value of our products, we do not supply free sample,
if you need a sample for testing,
please kindly contact our sales for more details.
2.How long to deliver the products?
-The exact delivery date need to according to your model and
quantity. Usually within 5-7 working
days for sample after receive the payment and 15-20 working days
for mass production.
3.Do you offer guarantee for the products?
-Yes, we offer 2 years warranty our products, several item can be 3
years with extra costs
4.How to deal with the faulty products?
-Firstly, our products are produced in strict quality control
system and the defective rate will be less
than 1%.Secondly, during the guarantee period,we will send new
replacement with new order for small
quantity.. For defective batch products, we will repair them and
resend them to you or we can discuss the
solution including re-call according to real situatio.
