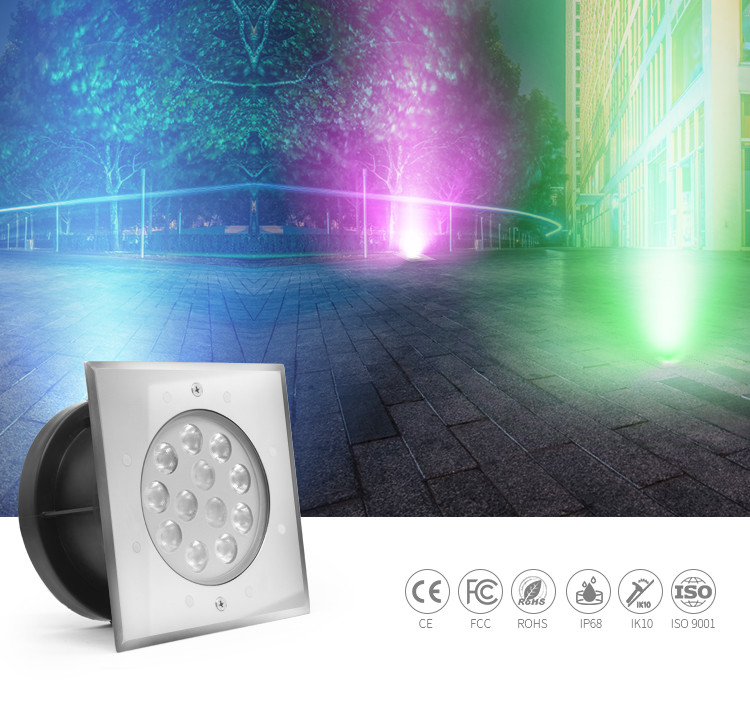

9W Flat Waterproof DMX512 Control RGB Color IP68 Led Landscape
Light Square Light
Product details
1. IP Rank: IP68 waterproof.
2. Private Mode products, support ODM&OEM.
3. 316L Stainless steel material, super good anti-corrosion
4. Customized IP68 waterproof nickel plated brass design, good
anti-corrosion.
5. RGB external control and DMX512 control are the best selling
control in Heguang.
Product Features
1. 316L stainless steel material, strong anti-corrosion ability.
2. Shinning angle : 30°, other options: 15°/45°/60°.
3. Material: 316L Stainless steel +Tempered glass cover cover, no
yellowing or dazzling for two years.
4. Thickened aluminum board: 2-3mm, super good heat dissipation,
heat conductivity :2.0W/(m.k).
5. Integrated bead lens with uniform lighting, no dazzling,light
transmittance ＞85%.
Specification
| HG-UL-9W-SMD-G2-RGB-X/HG-UL-9W-SMD-G2-RGB-D |
| Lamp paramater | Material | SS316L body+tempered glass cover+VDE rubber cable |
| length | 150×150×87.5mm |
| Input voltage | DC24V |
| Constant Driver | yes |
| Over-current Protection | yes |
| Wattage | 9±1W Epistar |
| Light lumen | 380LM±10％ |
| Beam angle | 15°/30°/45°/60° |
| CCT: | RGB(DMX512/External /Wifi control |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, RoHS,FCC,IP68,IK10 |
| Life-span | 50,000 hours |
| Warranty | 2Years |
| RGB Controller | LED Ground lights | 1.DMX512 (can get the RGB color changing synchronous) 5 wires |
| 2, external controller (can get the RGB color changing synchronous)
4 wires |
| Test position | LED Grond light (Min) |
| Working temperature 28℃ | Working temperature 40℃ |
| Land test (Min) | 480 | 480 |
| LED edge temperature(℃) | 68 | 75 |
Product Size
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. Lights house ground must be 8 hours aging test.
3. Ground water proof lights finished products all passed 30 steps
quality inspection
4. IP68 structure waterproof, can long time use underwater.
5. Constant current driver, comply with CE & EMC standard.
Application
RGB in ground light widely used as garden, community, lawn, park and other landscape
lighting
Some tips for you
Q1: How to choose the right LED energy saving lamps?
Low watage with high Lumen. This will save more electricity bill.
Q2: What is the advantages of LED?
Environmental friendly, Energy saving and Long lifespan.
Q3: The key factor that influence LED lifespan.
Temperature: It requires that junction temperature of LED chip
should be ≤120℃,
so the center temperature at the LED bottom of light board should
be ≤ 80 ℃.
Q4: Why choose us?
1. Lower wattage with high Lumen and more energy-efficient.
2. All lamps are self-developed patent products.
3. IP68 structure waterproof without glue, and lamps disspate heat
through structure.
4. According to the LED characteristic, the center temperature at
the LED bottom of light board must be controlled strictly( ≤ 80 ℃).
5. High quality driver of lamps to ensure the long lifespan.
6. All products have passed CE, ROHS, FCC, IP68, and our Par56 pool
light have got UL certification.
7. All products need to pass 30 steps QC inspection, the quality
has the guarantee, and the faulty rate is less than three per
thousand.
