HIgh Voltage Square IP68 AC100-240v 18W Waterproof Outdoor Garden
Led Lights Ground
Product details

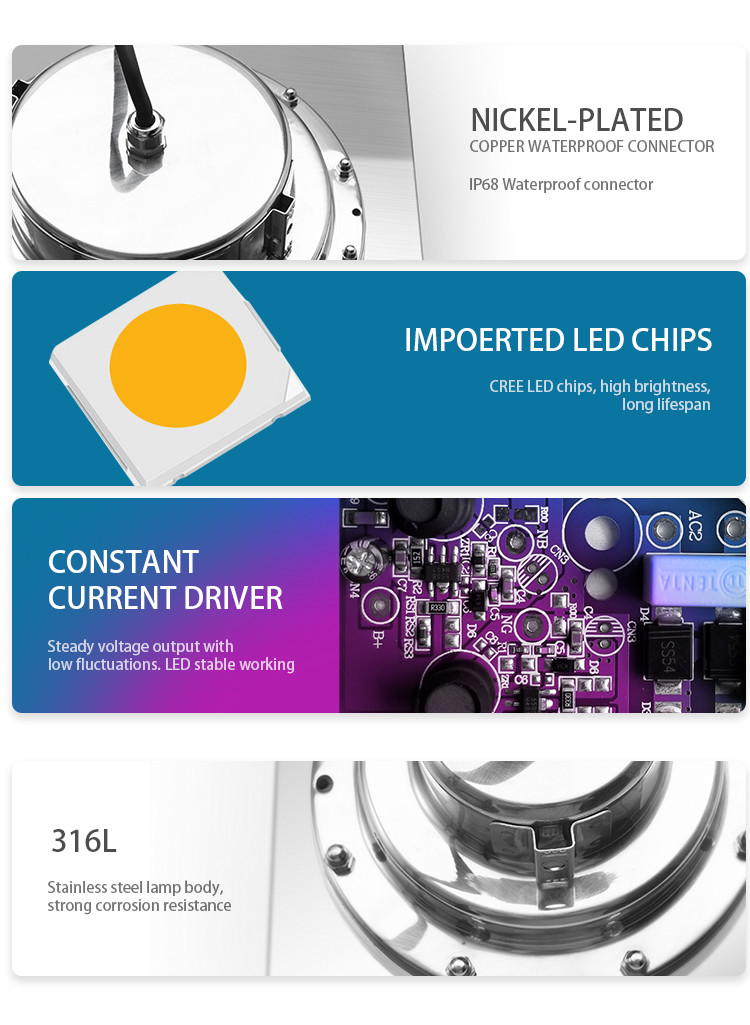

1. High efficient structural heat dissipation, assure lamp stable
working.
2. Imported highlight CREE LED chip, CRI>80. Low light
degradation and long lifespan.
3. Optical LED lens, 15/30/45/60°for optional.
4. High efficient structural heat dissipation, assure lamp stable
working.
5. 316 screws are riveted on the surface cover, good looking and
won't loosen.
Product Features
1. 8 hours aging testing, 30 steps quality inspections, assure the
great quality products.
2. Made of 316L stainless steel, strong corrosion-resistance.
3. 18w inground light, widely used for square, park.
4. Lamp succeeded in the IES and Temperature rise test.
5. 8mm IK10 transparent tempered glass, has great Impact
resistance, and high light transmittance > 90%.
Specification
| HG-UL-18W-SMD-G2-H |
| Lamp paramater | Material | SS316L body+tempered glass cover+VDE rubber cable |
| length | 250×250×93mm |
| Input voltage | AC100-240V |
| Constant Driver | yes |
| Over-current Protection | yes |
| Wattage | 18W±10% CREE |
| Light lumen | 1600lm±10％ |
| Beam angle | 15°/30°/45°/60° |
| CCT | Pure White: 6500±10% Warm White:3000K±10% costomized |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, RoHS,FCC,IP68,IK10 |
| Life-span | 50,000 hours |
| Warranty | 2Years |
| Test position | LED Grond light (Min) |
| Working temperature 28℃ | Working temperature 40℃ |
| Land test(Min) | 480 | 480 |
| LED edge temperature(℃) | 70 | 76 |
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. Outdoor inground lights must be 8 hours aging test and provide 2 Years warranty.
3. Park Light finished products all passed 30 steps quality
inspection.
4. Good looking stamping SS316 rivet screws, more stable, never
fall off.
5. Good looking with rivet screw and cover nut assembly, longer
lifespan.
6. IP68 structure waterproof, can long time use underwater.
Application
Landscape light widely used as garden, community, lawn, park and
other landscape lighting.
Packing List
| Item | HG-UL-18W-SMD-G2-H |
| Product weight | 500G/PCS |
| color box size | 625×380×325mm |
| Carton/pcs | 50pcs/Carton |
| Carton size | 610x410x410mm |
| Carton weight | 28KG/CTN |
Some tips for you
Q1:How to choose the right LED energy saving lamps?
Low watage with high Lumen. This will save more electricity bill.
Q2: What is the advantages of LED?
Environmental friendly, Energy saving and Long lifespan.
Q3: The key factor that influence LED lifespan.
Temperature: It requires that junction temperature of LED chip
should be ≤120℃, so the center temperature
at the LED bottom of light board should be ≤ 80 ℃.
Q4: Why choose us?
1. Lower wattage with high Lumen and more energy-efficient.
2. All lamps are self-developed patent products.
3. IP68 structure waterproof without glue, and lamps disspate heat
through structure.
4. According to the LED characteristic, the center temperature at
the LED bottom of light board must be controlled strictly( ≤ 80 ℃).
5. High quality driver of lamps to ensure the long lifespan.
6. All products have passed CE, ROHS, FCC, IP68, and our Par56 pool
light have got UL certification.
7. All products need to pass 30 steps QC inspection, the quality
has the guarantee, and the faulty rate is less than three per
thousand .
