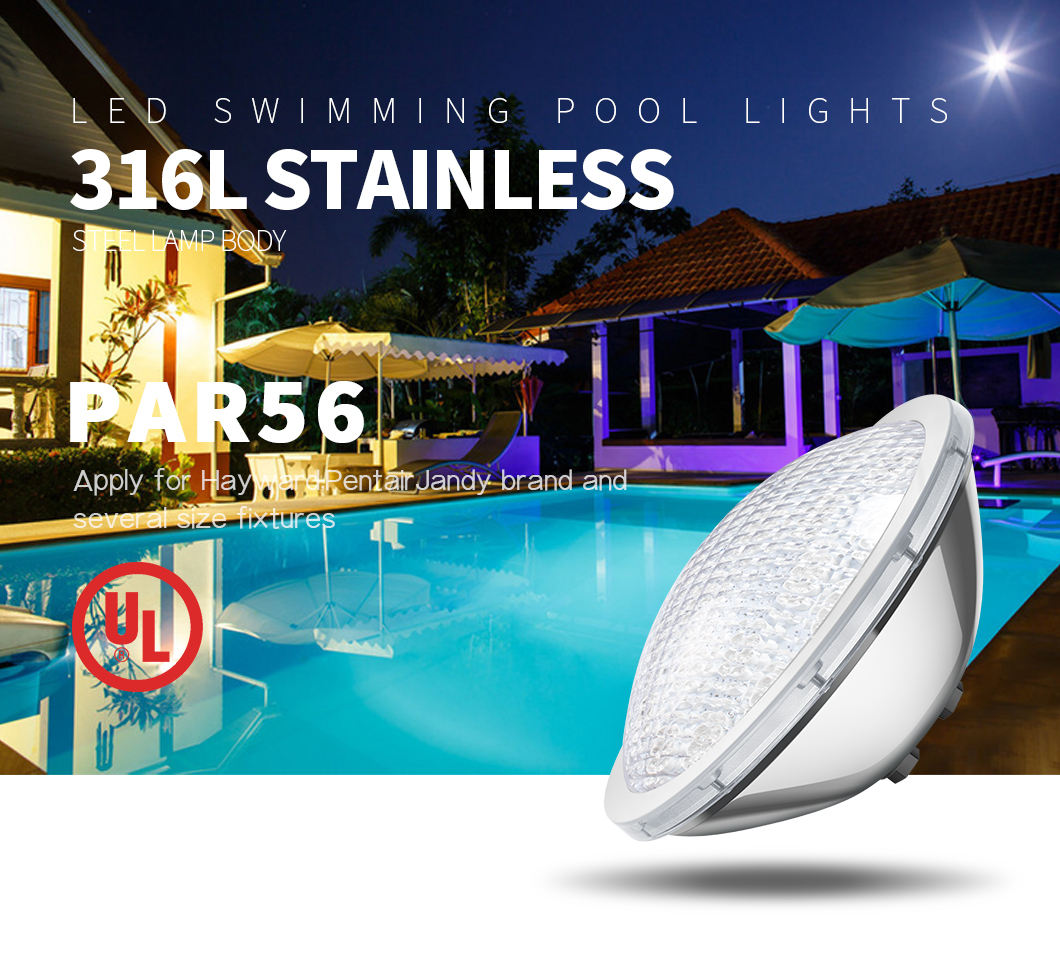

Product features
1. 316L stainless steel lamp body.
2. Same size with the traditional PAR56, can totally match the
Par56 niches.
2. Boat led light are IP68 structure waterproof.
3. Constant current power driver, EMC anti-interference circuit.
6. Garden pool light Same size with the traditional PAR56, can
totally match the Par56 niches.
Specification
| HG-P56-18×1W-C-RGB-T-UL |
| Lamp paramater | Material | SS316L + Anti-UV PC cover |
| Light dimension | Φ177×102mm |
| Input voltage | AC12V |
| Wattage | 18W±10％ |
| Light lumen | 630LM±10％ |
| Beam angle | 15°/30°/45°/60° |
| BASE | two screws terminal |
| CCT | RGB |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | UL,CE, ROHS,FCC, IP68,VDE |
| Life-span | 50,000 hours |
| Warranty | 3 Years |
| !!! Remarks | Connect coil transformer | must be coil transformer |
| Waterproof ring of housing | must do right to get IP68 |
| Connect our RGB 100% Synchronous Controller | Input Voltage | AC110/120/220V coil transformer |
|
| Wattage | 1.5W |
| cable | 2 wires |
| Control way | Synchronous control effect |
| Test position | LED PAR56 swimming pool lights (Min) |
| Working temperature 28℃ | Working temperature 40℃ |
| Underwater test time(Min) | 480 | 480 |
| LED edge temperature(℃) | 71 | 73 |
Product Size
Application
Led lambs underwater application: Concrete pool, Vinyl pool,
Outdoor Swimming Pool,
family pool, hotel pool, underwater etc.
Why choose us?
1. Lower wattage with high Lumen and more energy-efficient.
2. All lamps are self-developed patent products.
3. IP68 structure waterproof without glue, and lamps disspate heat
through structure.
4. According to the LED characteristic, the center temperature at
the LED bottom of light board must be controlled strictly( ≤ 80 ℃).
5. High quality driver of lamps to ensure the long lifespan.
6. All products have passed CE, ROHS, FCC, IP68, and our Par56 pool
light have got UL certification.
7. All products need to pass 30 steps QC inspection, the quality
has the guarantee, and the faulty rate is less than three per
thousand .
