RGB Underwater Led Spotlights , 24W 24V Led Spot Lighting SS316L
Adjust Angle pool light
Product details
1. IP Rate: IP68 Structural waterproof.
2. Recessed installation, parallel to the wall. Good looking.
3. IP68 Structure waterproof, all products succeeded in 10m deep
water testing before delivery.
4. 316 screws are riveted on the surface cover, good looking and
won't loosen.
5. RGB external control and DMX512 control are the best selling
control in Heguang.

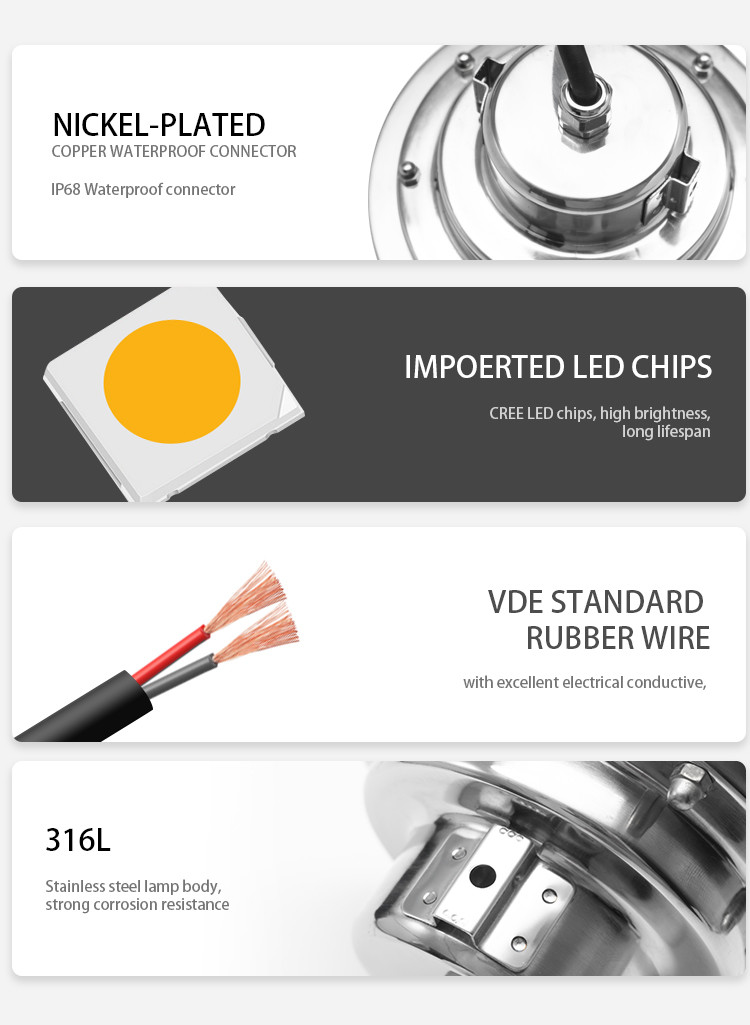

Product Features
1. Recessed under water light use 316L Stainless steel material, strong anti-corrosion ability.
2. Customized IP68 waterproof nickel plated brass design,good
anti-corrosion.
3. Integrated bead lens with uniform lighting, no dazzling,light
transmittance ＞85%.
4. Thickened aluminum board :2-3mm,better heat dissipation with the
conductivity :2.0W/(m.k).
5. VDE waterproof cable with rubber sleeve, resistant voltage
2000V, temperature resistance at -40℃ to 90℃.
Specification
| HG-UL-24W-SMD-R-RGB-X-12V/HG-UL-24W-SMD-R-RGB-D-12V |
| Lamp paramater | Material | SS316L body+tempered glass cover+VDE rubber cable |
| length | Φ220×93mm |
| Input voltage | DC12V/AC12V |
| Constant Driver | yes |
| Over-current Protection | yes |
| Wattage | 23W±10% |
| Light lumen | 900LM±10％ |
| Beam angle | 15°/30°/45°/60° |
| CCT | RGB ( synchronous control /DMX512/External /Wifi control) |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, RoHS,FCC,IP68,IK10 |
| Life-span | 50,000 hours |
| Warranty | 2Years |
| RGB Controller | LED Underwater lights | 1.DMX512 (can get the RGB color changing synchronous) 5 wires 2,
external controller (can get the RGB color changing synchronous) 4
wires
3.RGB synchronous control design,2 wires connection |
|
| test Site | LED Underwater light (Min) |
| Working temperature 28℃ | Working temperature 40℃ |
| Underwater test lighting time(Min) | 480 | 480 |
| Light source edge temperature(℃) | 48 | 62 |
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. IP68 structure waterproof, can long time use under water.
3. Good looking stamping SS316 rivet screws,more stable ,never fall
off
4. Good looking with rivet screw and cover nut assembly,longer
lifespan.
5. Under water light for fishing finished products all passed 30 steps quality inspection
6. LED pool lights under water swimming light must be 8 hours aging test and provide 2 Years warranty.
LED underwater pool light all passed 30 steps quality control ,
100% waterproof at 10m depth,
8 hours LED agening test,100% inspection before deliver.
Application
(Conventional bracket) can be suitable for underwater bracket
fixing or (with clamp) water pipe binding installation method,
widely used in garden pool, square pool, hotel pool, fountain and
other underwater lighting.
Packing List
| Item | HG-UL-24W-SMD-R-RGB-X-12V |
| Product weight | 1700G/PCS |
| color box size | 625×380×325mm |
| Carton/pcs | 50pcs/Carton |
| Carton size | 610x410x410mm |
| Carton weight | 28KG/CTN |
FAQ
1. Q: When can I get the price?
A: We usually quote within 24 hours after got your inquiry. If you
are urgent to get the prices,
please call us or tell us your email so that we will give priority
to your inquiry.
2. Q: Do you accept the OEM&ODM?
A: Yes, OEM or ODM service are available.
3. Q: May I get samples to test quality and how long can I get
them?
A: Yes, quote of sample is same as normal order and can be ready in
3-5 days.
4. Q: What is the MOQ?
A: NO MOQ, the more you order ,the cheaper price you will get.
5. Q: Can you accept small trial order?
A: Yes, no matter large or small trial order, your needs will get
our full attention. It’s our great honor to cooperate with you.
6.Q: How many pieces of lamp can connect with one RGB synchronous
controller?
A: It doesn’t depend on the power. It depend on quantity, maximum
is 20pcs. If it plus the amplifier, it can plus 8pcs amplifier.
