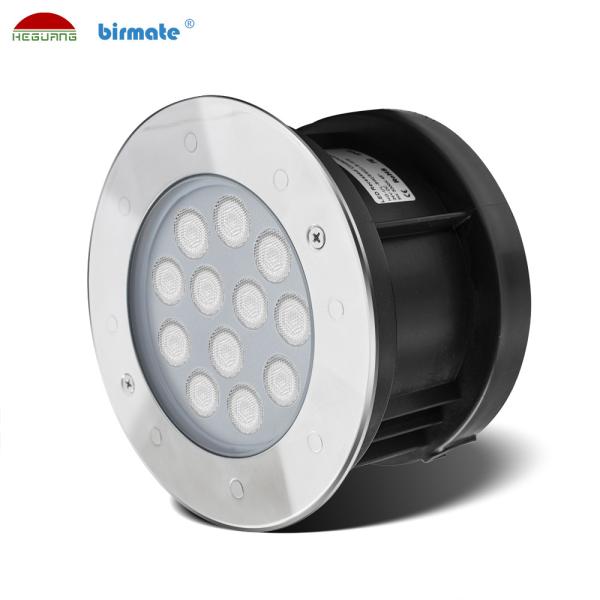

DMX512 Control 12V 316L Stainless Steel Waterproof Outdoor Unground
9W Recessed Underwater Light
Product details

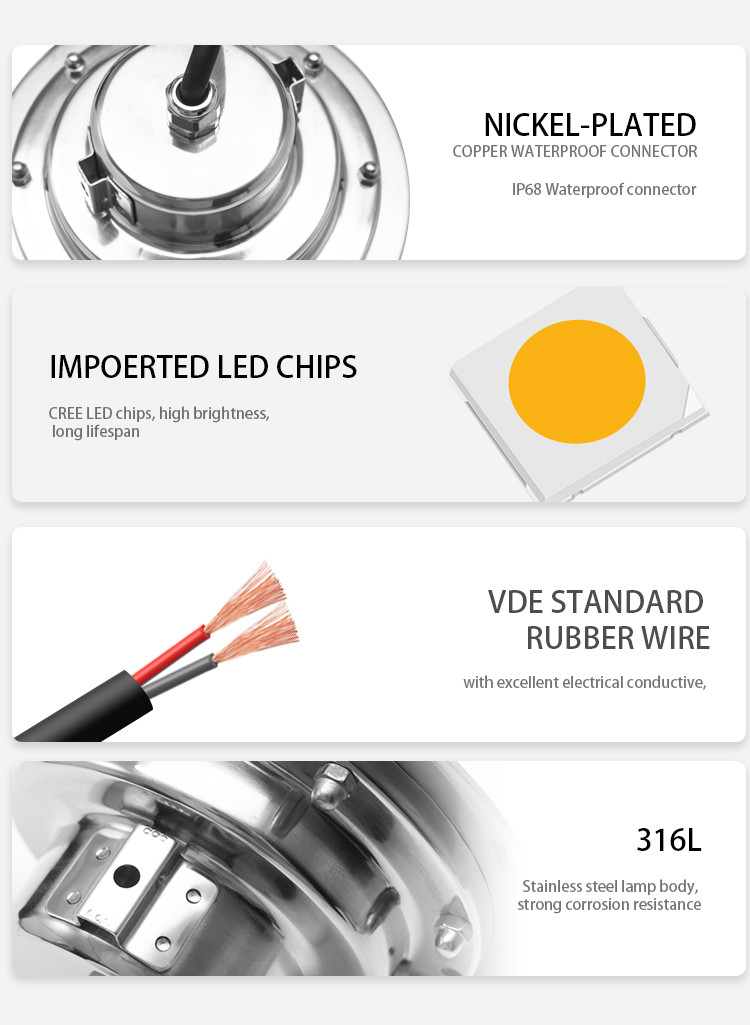

1. Recessed installation, parallel to the wall. Good looking.
2. Optical LED lens, 15/30/45/60°for optional.
3. 2mm aluminum light board for excellent heat dissipation,
2.0W/(m.k) Thermal conductivity.
4. VDE standard rubber wire, connected with IP68 nickel-plated
copper connector.
5. 8 hours aging testing, 30 steps quality inspections, assure the
great quality pool light.
6. Underwater spot light, durable and project used.
Product Features
1. High quality wafer chip Low light decay / long life / low energy
consumption.
2. Under water light is used for pond, pool, waterfall
3. High quality wafer chip Low light decay / long life / low energy
consumption.
4. Made of 316L stainless steel, strong corrosion-resistance, can
be used in salty water.
5. Under water boat lightswith 316L Stainless steel material, super
good anti-corrosion.
6. Light under the water can adjustable angle, adding bracket means
never loose.
Specification
| HG-UL-9W-SMD-R-RGB-X-12V/HG-UL-9W-SMD-R-RGB-D-12V |
| Lamp paramater | Material | SS316L body+tempered glass cover+VDE rubber cable |
| length | Φ150×87.5mm |
| Input voltage | DC12V |
| Constant Driver | yes |
| Over-current Protection | yes |
| Wattage | 9±1W |
| Light lumen | 350LM±10％ |
| Beam angle | 15°/30°/45°/60° |
| Color: | RGB(DMX512/External /Wifi control) |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, RoHS,FCC,IP68,IK10 |
| Life-span | 50,000 hours |
| Warranty | 2Years |
| RGB Controller | LED Underwater lights | 1.DMX512 (can get the RGB color changing synchronous) 5 wires |
| 2, external controller (can get the RGB color changing synchronous)
4 wires |
| test Site | LED Underwater light (Min) |
| Working temperature 28℃ | Working temperature 40℃ |
| Underwater test lighting time(Min) | 480 | 480 |
| Light source edge temperature(℃) | 59 | 68 |
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. IP68 structure waterproof ,can long time use under water.
3. Good looking stamping SS316 rivet screws,more stable ,never fall
off
4. Good looking with rivet screw and cover nut assembly,longer
lifespan.
5. Finished products all passed 30 steps quality inspection.
6. Under water flash light must be 8 hours aging test and provide 2
Years warranty.
LED underwater pool light all passed 30 steps quality control ,
100% waterproof at 10m depth ,
8 hours LED agening test,100% inspection before deliver.
Application
(Conventional bracket) can be suitable for underwater bracket
fixing or (with clamp) water pipe binding installation method,
widely used in garden pool, square pool, hotel pool, fountain and
other underwater lighting.
Packing List
| Item | HG-UL-9W-SMD-R-RGB-X-12V |
| Product weight | 900G/PCS |
| color box size | 625×380×325mm |
| Carton/pcs | 50pcs/Carton |
| Carton size | 610x410x410mm |
| Carton weight | 28KG/CTN |
FAQ
1. Q: When can I get the price?
A: We usually quote within 24 hours after got your inquiry. If you
are urgent to get the prices,
please call us or tell us your email so that we will give priority
to your inquiry.
2. Q: Do you accept the OEM&ODM?
A: Yes,OEM or ODM service are available.
3. Q: May I get samples to test quality and how long can I get
them?
A: Yes, quote of sample is same as normal order and can be ready in
3-5 days.
4. Q: What is the MOQ?
A: NO MOQ , the more you order ,the cheaper price you will get.
5. Q: Can you accept small trial order?
A: Yes, no matter large or small trial order, your needs will get
our full attention. It’s our great honor to cooperate with you.
6.Q: How many pieces of lamp can connect with one RGB synchronous
controller?
A: It doesn’t depend on the power. It depend on quantity, maximum
is 20pcs. If it plus the amplifier,
it can plus 8pcs amplifier. Totally the quantity of led par56 lamp
is 100pcs. And RGB Synchronous controller is 1 pcs,
amplifier is 8pcs.
