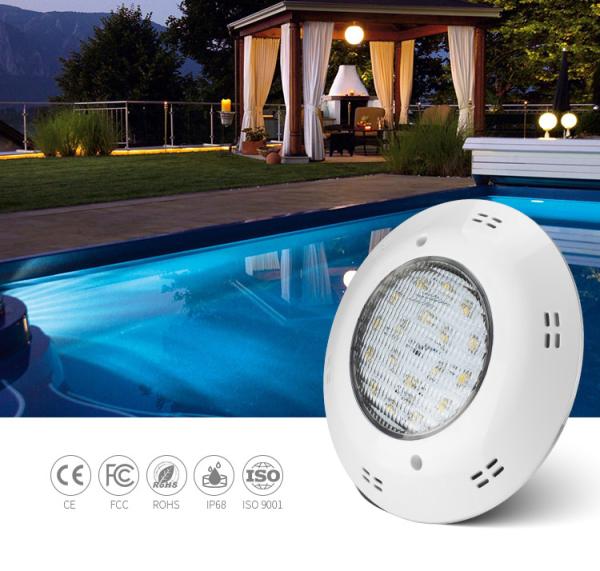

warm white swimming led surface-mounted concrete pool light
Product details
1. IP68 nickel plated brass connector,better waterproof and
anti-corrosion
2. Environmental ABS material shell, 7 colors for optional.
3. VED standard waterproof cable ,pure copper wire
4. Constant current power supply drive,EMC anti-interference circuit
5. lamp thickness 49.5mm
Product Features
1. 316L Stainless steel material base shell, great heat-dissipation
and corrosion-resistant.
2. IP68 Structure waterproof, without resin-filled.
3. Pool light 12v has transparent PC cover, uniform lighting no dazzing.
4. High tension waterproof silicone ring.
5. Nylon+fiber plastic back cover, good toughness and anti-aging
ability.
6. 8mm thickness bracket with screws fixation at 2 end, more
fastness.
Specification
| HG-PL-18X1W-C2 |
| Lamp paramater | Material | ABS + Transparent PC cover |
| Light dimension | Φ290×49.5mm |
| Input voltage | AC/DC12V |
| Wattage | 25W±10％ |
| Light lumen | 1200LM±10％ |
| Halogen replacement | / |
| Beam angle | 120° |
| BASE | Wire out |
| CCT | / |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, ROHS,FCC, IP68,VDE |
| Life-span | 50,000 hours |
| Warranty | 2 Years |
| !!! Remarks | Connect coil transformer | must be coil transformer |
| Waterproof ring of housing | must do right to get IP68 |
| Connect our RGB 100% Synchronous Controller | Input Voltage | AC110/120/220V coil transformer |
|
| Wattage | 1.5W |
| cable | 2 wires |
| Control way | Synchronous control effect |
| Test position | LED Surface Mounted Swimming Pool Light(Min) |
| Working temperature 28℃ | Working temperature 40℃ |
| Underwater test time(Min) | 480 | 480 |
| LED edge temperature(℃) | 70 | 73 |
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. Color logic pool light Must be 8 hours aging test.
3. Finished products all passed 30 steps quality inspection.
4. IP68 structure waterproof, can long time use underwater.
5. Constant current driver, comply with CE & EMC standard.
Application
Led lighting for the pool application: Concrete pool, Vinyl pool,
Outdoor Swimming Pool ,family pool,hotel pool ,underwater etc.
Packing List
Inner box dimension | 310×310×88 mm |
N.W. / pc | 1190g |
G.W. / pc | 1490g |
Carton dimension | 640×330×470mm |
Qty. / ctn. | 10PCS/CTN |
G.W. / ctn. | 16.1Kg |
Some tips for you
Q1: How to choose the right LED energy saving lamps?
Low watage with high Lumen. This will save more electricity bill.
Q2: What is the advantages of LED?
Environmental friendly, Energy saving and Long lifespan.
Q3: The key factor that influence LED lifespan.
Temperature: It requires that junction temperature of LED chip
should be ≤120℃,
so the center temperature at the LED bottom of light board should
be ≤ 80 ℃.
Q4: Why choose us?
1. Lower wattage with high Lumen and more energy-efficient.
2. All lamps are self-developed patent products.
3. IP68 structure waterproof without glue, and lamps disspate heat
through structure.
4. According to the LED characteristic, the center temperature at
the LED bottom of light board must be controlled strictly( ≤ 80 ℃).
5. High quality driver of lamps to ensure the long lifespan.
6. All products have passed CE, ROHS, FCC, IP68, and our Par56 pool
light have got UL certification.
7. All products need to pass 30 steps QC inspection, the quality
has the guarantee, and the faulty rate is less than three per
thousand .
