Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. Fountain with led light must be 8 hours aging test and provide 2
Years warranty.
3. Finished products all passed 30 steps quality inspection.
4. Good looking stamping SS316 rivet screws, more stable, never
fall off
5. Good looking with rivet screw and cover nut assembly, longer
lifespan.
6. Led fountain are IP68 structure waterproof, can long time use
underwater.
Product Features
1. High quality fountain light, two years warranty.
2. Integrated bead lens with uniform lighting, no dazzling.
3. IK10 tempered glass cover, transparent and strong enough.
4. Fountain led light water has better heat dissipation with the
conductivity :2.0W/(m.k).
5. Unique structure waterproof design, can match the maximum nozzle
size ø50mm.
Specification
| HG-FTN-24W-B1 |
| Lamp parameter | Material | 316L Stainless steel + Tempered glass(IK10) |
| Light dimension | Φ210×75mm,nozzle hole-50mm |
| Input voltage | DC24V |
| Wattage | 24W±10% |
| Light lumen | 2000LM±10％ |
| Beam angle | 30°/45°/60° |
| CCT | RGB |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | IK10,CE, ROHS,FCC, IP68,VDE |
| Life-span | 50,000 hours |
| Warranty | 2 Years |
| Connect our RGB External Controller | Input Voltage | DC24V coil transformer |
|
| Wattage | 360W |
| cable | 4wire |
| Test position | LED Surface Mounted Swimming Pool Light(Min) |
| Working temperature 28℃ | Working temperature 40℃ |
| Underwater test time(Min) | 480 | 480 |
| LED edge temperature(℃) | 48 | 63 |
Product Size
Installation instructions
Connection instructions
Product details

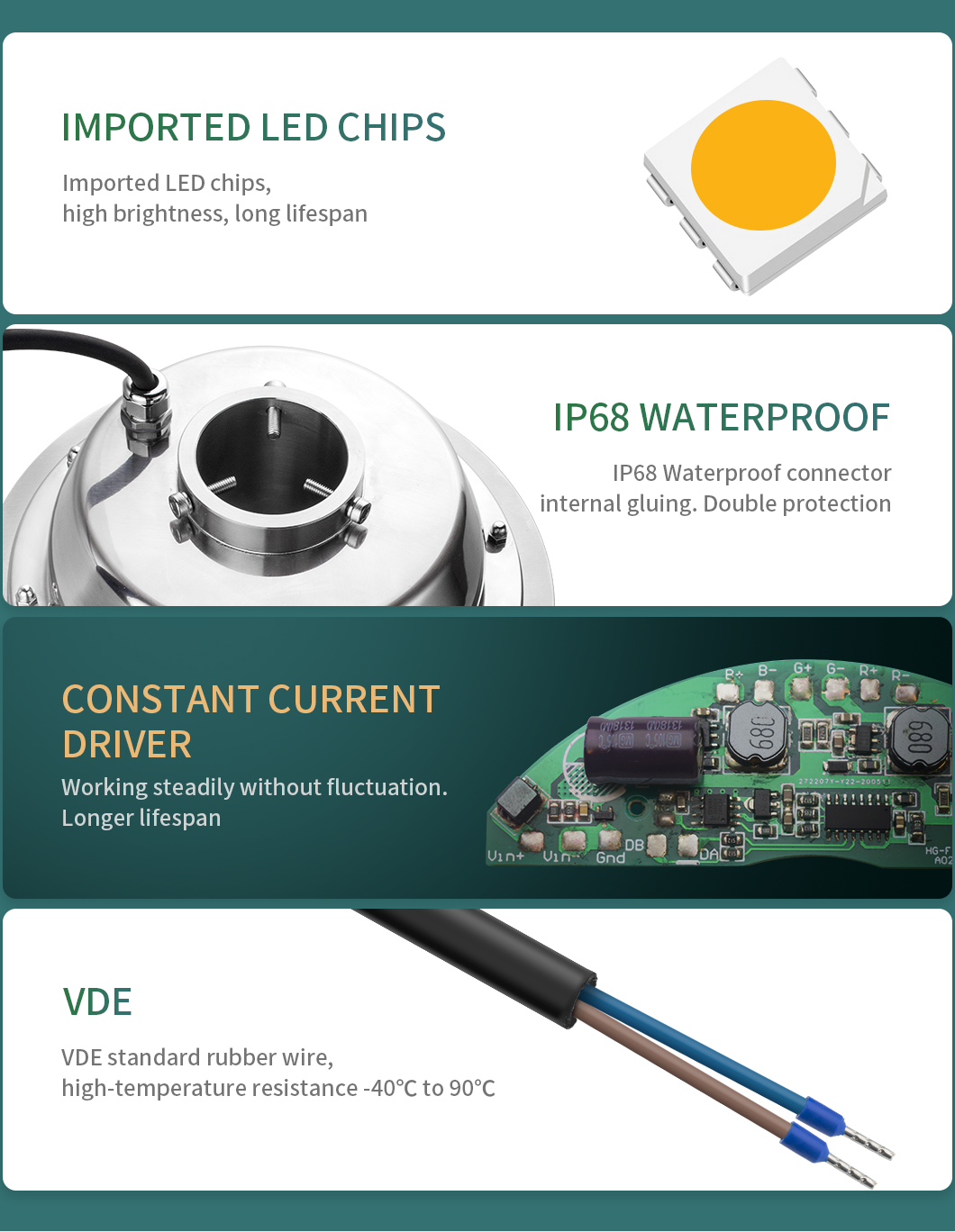

1. 316L Stainless steel material, anti-corrosion.
2. Led fountain light ip68 with VDE standard outlet: standard cable
length is 1 meter.
3. Imported high light CREE LED chip, CRI>80. Low light
degradation and long lifespan.
4. Lens is integrated structure.
5. 8.0mmTempered glass transparent cover, thickness.
6. RGB external control and DMX512 control are the best selling
control in Heguang.
Application
LED for fountain widely used as square fountains, garden fountains,
rockery fountains,
artificial waterfalls and other underwater lighting.
Packing List
| Item | HG-FTN-24W-B1 |
| Product weight | 1500G/PCS |
| color box size | 625×380×325mm |
| Carton/pcs | 20pcs/Carton |
| Carton size | 617×396×396mm |
| Carton weight | 34KG/CTN |
FAQ
Q1:How to choose the right LED energy saving lamps?
A:Low watage with high Lumen. This will save more electricity bill.
Q2: What is the advantages of LED?
A:Environmental friendly, Energy saving and Long lifespan.
Q3:The key factor that influence LED lifespan.
A:Temperature: It requires that junction temperature of LED chip
should be ≤120ºC,
so the center temperature at the LED bottom of light board should
be ≤ 80 ºC.
Q4: When can I get the price?
A: We usually quote within 24 hours after got your inquiry. If you
are urgent to get the prices,
please call us directly or leave us the message ,we will give priority to your inquiry.
Q5: May I get samples to test quality and how long can I get them?
A: Yes, samples can be ready in 3-5 days.
Q6: What is the MOQ?
A: NO MOQ,the more you order ,the cheaper price you will get .
Q7: Can you accept small trial order?
A: Yes
Q8: Do you accept the OEM&ODM?
A: Yes, OEM/ODM acceptable
