Product details

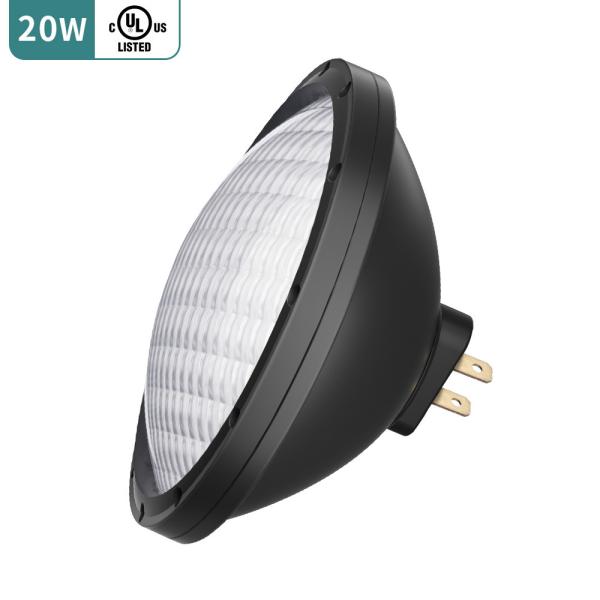

1. UL Certified LED PAR56 pool bulb.
2. CD12 Die-cast aluminum material shell, great heat dissipation
through structure.
3. Anti-UV transparent PC cover, won't turn yellow within 2 years.
4. Aluminum material +ANTI UV PC cover, no yellowing or dazzling
for two years.
5. Par56 Swimming pool light must assemble to IP68 Niche/Housing.
6. Adjustable height patented design, PAR56 bulb can perfectly
match with the niches of Pentair, Hayward, etc.
7. The copper GX16D base, great electrical conductivity.
8. high-quality 2.0MM thickness, 2.0W / (m.k) thermal conductivity
aluminum substrate.
9. Full inspection and shipment of finished products.
10. 90% Transparent PC cover, light transmittance ＞90%.
Specification
| HG-P56-20W-B(GX16D-H)-UL |
| Lamp parameter | Material | Aluminum+Anti UV PC cover |
| Light dimension | Φ177×118mm |
| Input voltage | AC100-240V |
| Wattage | 21W±10％ |
| Light lumen | 1800LM±10％ |
| Halogen replacement | 150W |
| Beam angle | 120° |
| BASE | GX16D |
| CCT | Pure White: 6500±10% Warm White:3000K±10% costomized/RGB |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | UL,CE, ROHS, FCC |
| Life-span | 50,000 hours |
| Warranty | 3 Years |
| !!! Remarks | Connect coil transformer | must be coil transformer |
| Waterproof ring of housing | must do right to get IP68 |
| Test position | LED PAR56 swimming pool lights (Min) |
| Working temperature 28℃ | Working temperature 40℃ |
| Underwater test time(Min) | 480 | 480 |
| LED edge temperature(℃) | 65 | 67 |
Application
led salt water pool light application :Concrete pool ,Vinyl pool
,Outdoor Swimming Pool ,family pool,hotel
pool ,underwater etc.
Quality Control
Each lamp must be passed the 14 time tests and then send to
customers.
Special 1: high pressure test of 6 meters deep.
Special 2: prevent water mist treatment in PC cover
Special 2: 3 times of impact switch ageing test, total 8 hours
Special 4: QC Report of each order which will send to customer with
CI.
FAQ
1. Q: When can I get the price?
A: We usually quote within 24 hours after got your inquiry. If you
are urgent to get
the prices, please call us directly or leave us the messge ,we will
give priority to your inquiry.
2. Q: May I get samples to test quality and how long can I get
them?
A: Yes, samples can be ready in 3-5 days.
3. Q: What is the MOQ?
A: NO MOQ,the more you order ,the cheaper price you will get .
4. Q: Can you accept small trial order?
A: Yes
5. Q: Do you accept the OEM&ODM?
A: Yes, OEM/ODM acceptable
6.Q:what's the RGB control you have?
A: Patent design RGB 100% synchronous control ,switch control
,external control ,wifi control ,DMX512 control,etc.
