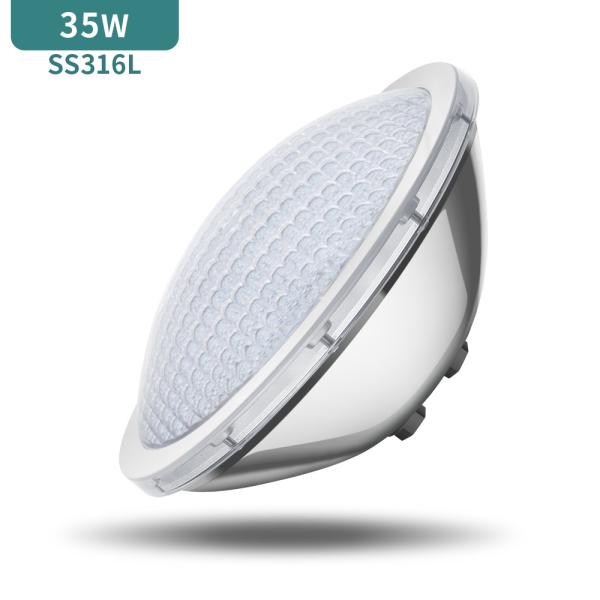

Product features
1. Twin posts, not easy to loose.
2. 12v pool light 4 layers waterproof.
3. Adapted to American lamps: pentair/AUSTRAL/Haywad etc.
4. Anti UV PC cover, no yellowing or dazzling for two years.
5. PC material with bracket lens, high temperature and heat
resistance.
6. PAR56 underwater lights fully match the market's conventional
PAR56 lamps, replacing halogen.
| HG-P56-35W-C-2835 |
| Lamp paramater | Material | SS316L + Anti-UV PC cover |
| Light dimension | Φ177×102mm |
| Input voltage | AC12/DC12V |
| Wattage | 35W±10％ |
| Light lumen | 3700LM±10％ |
| Beam angle | 120° |
| BASE | two screws terminal |
| CCT | Pure White: 6500±10% |
| Warm White:3000K±10% |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, ROHS,FCC, IP68,VDE |
| Life-span | 50,000 hours |
| Warranty | 2 Years |
| !!! Remarks | Connect coil transformer | must be coil transformer |
| Waterproof ring of housing | must do right to get IP68 |
| Test position | LED PAR56 swimming pool lights (Min) |
| Working temperature 28℃ | Working temperature 40℃ |
| Underwater test time(Min) | 480 | 480 |
| LED edge temperature(℃) | 69 | 72 |
Advantage
1. Constant current power supply driver, anti-interference circuit.
2. pool underwater led light Assembly with SS316 screws, more
durable.
3. PC material LED lens with bracket, high heat resistance.
4. Underwater pool light bulbs color UL approval for some models.
5. Swimming pool led underwater light IP68 structure waterproof ,
whithout glue filled ,no color temperature fading.
6. Underwater uv light for pool diameter is about 177mm, can
totally meet various PAR56
housing/niche:Pentair, Austra,Hayward,etc.
Application
led pool lighting widely use in concrete pool ,vinyl pool, the lamp size can totally match various Germany and US
PAR56 housing/niches.
Some tips for you
Q1: How to choose the right LED energy saving lamps?
Low watage with high Lumen. This will save more electricity bill.
Q2: What is the advantages of LED?
Environmental friendly, Energy saving and Long lifespan.
Q3: The key factor that influence LED lifespan.
Temperature: It requires that junction temperature of LED chip
should be ≤120℃,
so the center temperature at the LED bottom of light board should
be ≤ 80 ℃.
Q4: Why choose us?
1. Lower wattage with high Lumen and more energy-efficient.
2. All lamps are self-developed patent products.
3. IP68 structure waterproof without glue, and lamps disspate heat
through structure.
4. According to the LED characteristic, the center temperature at
the LED bottom of light board must be controlled strictly( ≤ 80 ℃).
5. High quality driver of lamps to ensure the long lifespan.
6. All products have passed CE, ROHS, FCC, IP68,IK10 and our Par56
pool light have got UL certification.
7. All products need to pass 30 steps QC inspection, the quality
has the guarantee, and the faulty rate is less than three per
thousand .
8.: Patent design RGB 100% synchronous control ,switch control
,external control ,wifi control ,DMX512 control,etc.
