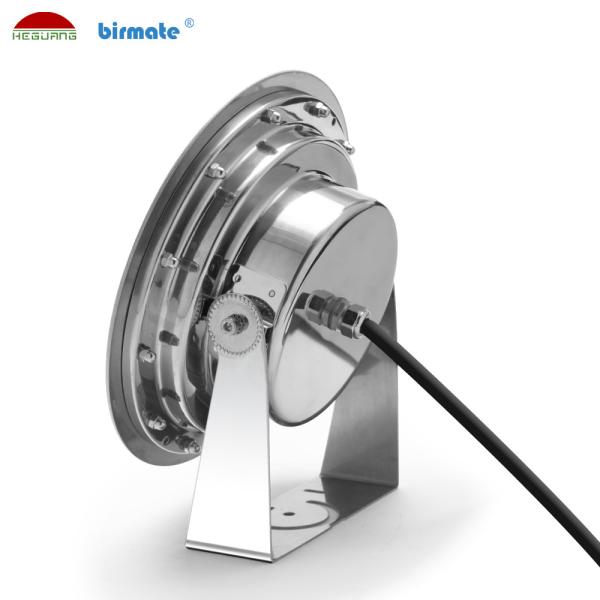

white light IP68 Structural waterproof led underwater swimming pool
lights
LED Underwater Product Quick detail
1. Shinning angle:15°/30°/45°/60°.
2. IP Rate: IP68 Structural waterproof.
3. Multiple wattage options from 3W-48W.
4. 316L Stainless steel material, multiple color for option.
5. RGB DMX512 control and External control is the most suitable control mode for underwater
pool lighting.
Underwater light Specification
| Model | HG-UL-48W-SMD |
| Electrical | Voltage | DC24V |
| Current | 2000ma |
| Wattage | 48W±10% |
| Optical | LED chip | SMD3535LED(CREE) |
| LED (PCS) | 24PCS |
| Certification | FCC,CE, RoHS,IP68,IK10 |
| CCT | 6500K±10％/4300K±10％/3000K±10％ |
| LUMEN | 4000LM±10％ |
Underwater swimming pool light certification
About company
led Underwater Product features
1. Multiple wattage options from 3W-48W.
2. Swimming pool light led get UL certification.
3. 316L Stainless steel material.
4. Transparent tempered glass,thickness :8.0mm.
LED Underwater light Advantage
1. Led pool lighting UL certification.
2. VDE rubber cable ,cable length :1M
3. IP68 Structural waterproof.No change color temperature .
4. Reliable performance with 100% water tested at a depth of 10m.
Application
led Underwater swimming pool light widely used in swimming pools, Plastic film
pools, glass
fiber pools,Bath pools,hot spring pools and other underwater
lighting.
led Underwater swimming pool light case
Packing List
| Packing/ Shipping | Lamp sizeInner box dimension | 230×230×118mm |
| N.W. / pc | 2450g |
| G.W. / pc | 2670g |
| Carton dimension | 480×245×500mm |
| Qty. / ctn. | 8PCS/Canton |
| G.W. / ctn. | 22.5Kg |
All passed 30 steps quality control , 100% waterproof at 10m depth,
8 hours LED agening test,
100% inspection before deliver.
Some tips for you
Q1: How to choose the right LED energy saving lamps?
Low watage with high Lumen. This will save more electricity bill.
Q2: What is the advantages of LED?
Environmental friendly, Energy saving and Long lifespan.
Q3: The key factor that influence LED lifespan.
Temperature: It requires that junction temperature of LED chip
should be ≤120℃, so the center
temperature at the LED bottom of light board should be ≤ 80 ℃.
Q4: Why choose us?
1.The Only One UL Certificated Pool Light Supplier in China
2.The First One Pool Light Supplier Use Structure Waterproof
Technology In China
3.The Only One Pool Light Supplier Developed The 2 Wires RGB DMX
Control System
4.The First One Pool Light Supplier Developed The 2 Wires RGB
Synchronous Controller In China
5. All lamps are self-developed patent products.
6. IP68 structure waterproof without glue, and lamps disspate heat
through structure.
7. High quality driver of lamps to ensure the long lifespan.
