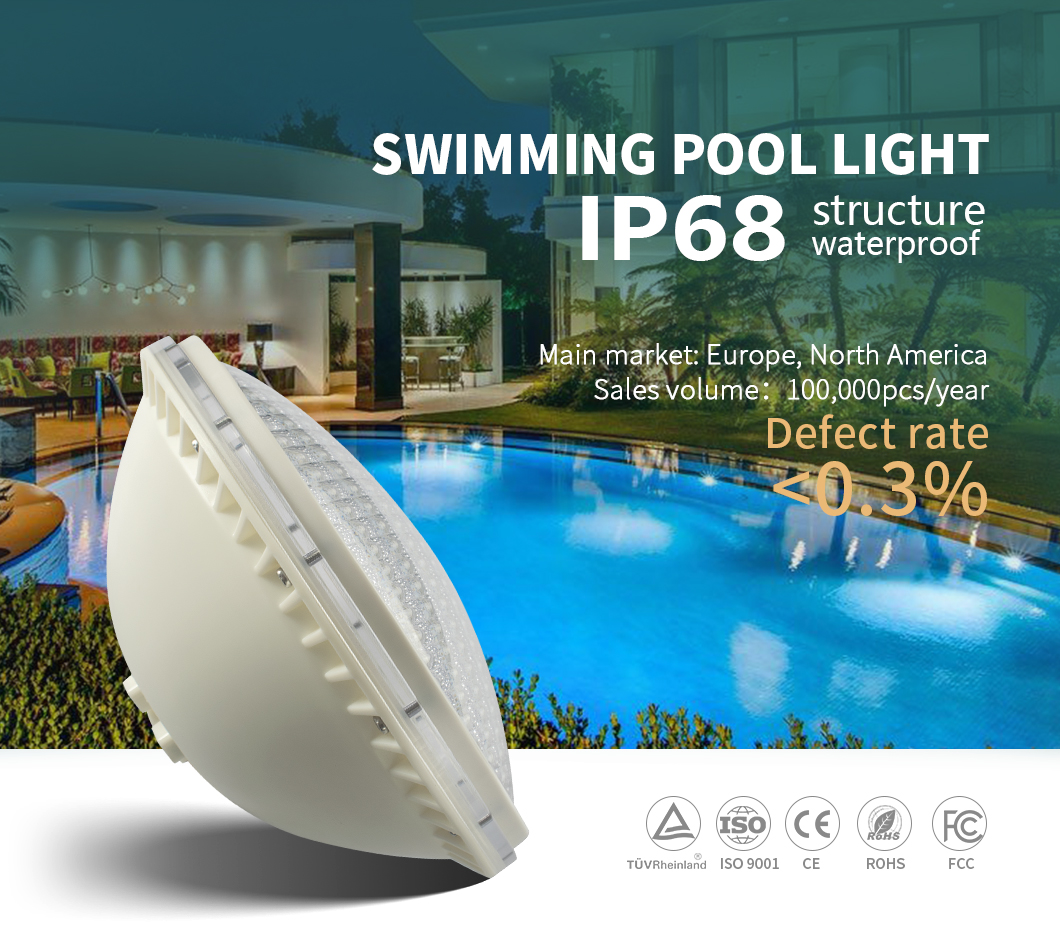

Can replace the traditional halogen lamp LED swimming pool lighting
Par56 Product Quick detail
1. Shinning angle:120°.
2. IP Rate: IP68 Structural waterproof.
3. Multiple wattage options from 12W-70W.
4. Engineering ABS material, multiple color for option.
5. IP68 Structural waterproof, no yellowing or dazzling for two
years
6. RGB Switch control and synchronous control are the best selling
control in Heguang.
Par56-18W-A Specification
| HG-P56-18W-A |
| Lamp paramater | Material | Engineering ABS + Anti-UV PC cover |
| Light dimension | Φ177×95mm |
| Input voltage | AC12/DC12V |
| Wattage | 18W±10％ |
| Light lumen | 1700LM±10％ |
| Halogen replacement | 150W |
| Beam angle | 120° |
| BASE | two screws terminal |
| CCT | Pure White: 6500±10% |
| Warm White:3000K±10% costomized |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, ROHS,FCC, IP68 |
| Life-span | 50,000 hours |
| Warranty | 2 Years |
| !!! Remarks | Connect coil transformer | must be coil transformer |
| Waterproof ring of housing | must do right to get IP68 |
| test Site | LED PAR56 swimming pool lights (Min) |
| Ambient temperature 28℃ | Ambient temperature 40℃ |
| Underwater test lighting time(Min) | 10 | 30 | 90 | 150 | 10 | 30 | 90 | 150 |
| Light source edge temperature(℃) | 56 | 61 | 69 | 71 | 62 | 67 | 73 | 75 |
Par56-18W-A Advantage
1. Led pool lighting for jandy get UL certification.
2. Fully compatible with PAR56 swimming pool lighting.
3. IP68 Structural waterproof.No change color temperature .
4. Reliable performance with 100% water tested at a depth of 10m.
swimming pool light certification
company profile
Par56 Product features
1. Multiple wattage options from 12W-70W.
2. Swimming pool light led get UL certification.
3. Environmental protection ABS plastic lamp cup.
4. UV-PC transparent bead cover, no yellowing or dazzling for two
years.
5. LED pool lighting fixture using Epistar chip lamp beads, high
cost performance.
6. Pool light led Can replace traditional halogen lamps, fully
matching the conventional PAR56
lamps in the market.
Packing List
| Packing/ Shipping | Lamp sizeInner box dimension | 185×185×118 mm |
| N.W. / pc | 1150g |
| G.W. / pc | 1350g |
| Carton dimension | 630×410×410 mm |
| Qty. / ctn. | 20PCS/Canton |
| G.W. / ctn. | 28.2Kg |
All passed 30 steps quality control , 100% waterproof at 10m depth,
8 hours LED agening test,
100% inspection before deliver.
Some tips for you
Q1: How to choose the right LED energy saving lamps?
Low watage with high Lumen. This will save more electricity bill.
Q2: What is the advantages of LED?
Environmental friendly, Energy saving and Long lifespan.
Q3: The key factor that influence LED lifespan.
Temperature: It requires that junction temperature of LED chip
should be ≤120℃, so the center
temperature at the LED bottom of light board should be ≤ 80 ℃.
Q4: Why choose us?
1.The Only One UL Certificated Pool Light Supplier in China
2.The First One Pool Light Supplier Use Structure Waterproof
Technology In China
3.The Only One Pool Light Supplier Developed The 2 Wires RGB DMX
Control System
4.The First One Pool Light Supplier Developed The 2 Wires RGB
Synchronous Controller In China
5. All lamps are self-developed patent products.
6. IP68 structure waterproof without glue, and lamps disspate heat
through structure.
7. High quality driver of lamps to ensure the long lifespan.
8. All products have passed CE, ROHS, FCC, IP68, and our Par56 pool
light have got UL certification.
9. All products need to pass 30 steps QC inspection, the quality
has the guarantee, and the faulty
rate is less than three per thousand .
