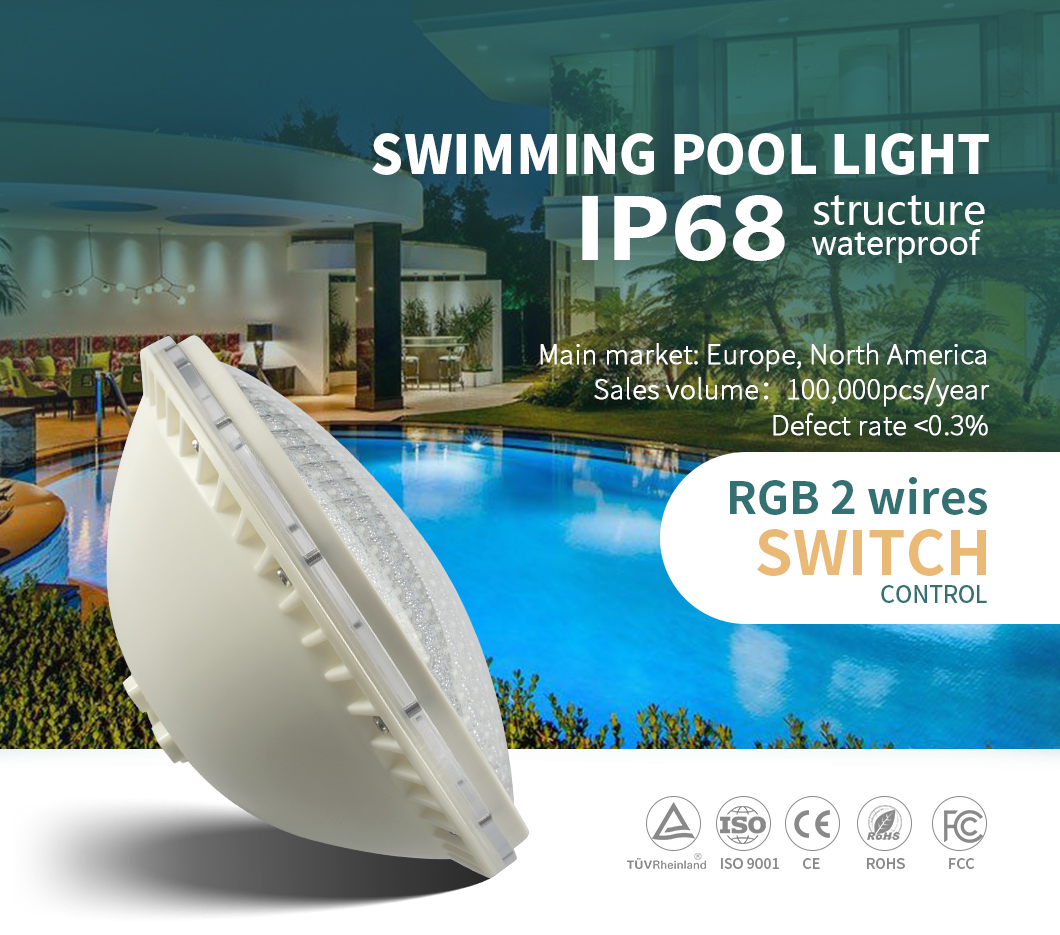

Par56 Product Quick detail
1. Shinning angle:120°.
2. IP68 Structural waterproof.
3. RGB Switch control and synchronous control are the best selling
control in Heguang.
4. Environmental protection ABS plastic lamp cup.
5. UV-PC transparent bead cover, no yellowing or dazzling for two
years.
6. LED pool lighting fixture using Epistar chip lamp beads, high
cost performance.
7. Pool light led Can replace traditional halogen lamps, fully
matching the conventional PAR56
lamps in the market.
Par56-18W-A-K Specification
| HG-P56-18W-A-K |
| Lamp paramater | Material | Engineering ABS + Anti-UV PC cover |
| Light dimension | Φ177×95mm |
| Input voltage | AC12 |
| Wattage | 18W±10％ |
| Light lumen | 520LM±10％ |
| Halogen replacement | 150W |
| Beam angle | 120° |
| BASE | two screws terminal |
| CCT | Pure White: 6500±10% |
| Warm White:3000K±10% costomized |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, ROHS,FCC, IP68 |
| Life-span | 50,000 hours |
| Warranty | 2 Years |
| !!! Remarks | Connect coil transformer | must be coil transformer |
| Waterproof ring of housing | must do right to get IP68 |
| test Site | LED PAR56 swimming pool lights (Min) |
| Ambient temperature 28℃ | Ambient temperature 40℃ |
| Underwater test lighting time(Min) | 10 | 30 | 90 | 150 | 10 | 30 | 90 | 150 |
| Light source edge temperature(℃) | 56 | 61 | 69 | 71 | 62 | 67 | 73 | 75 |
Packing List
| Packing/ Shipping | Lamp sizeInner box dimension | 185×185×118 mm |
| N.W. / pc | 1150g |
| G.W. / pc | 1350g |
| Carton dimension | 630×410×410 mm |
| Qty. / ctn. | 20PCS/Canton |
| G.W. / ctn. | 28.2Kg |
All passed 30 steps quality control , 100% waterproof at 10m depth,
8 hours LED agening test,100% inspection before deliver.
FAQ
1.How to get a sample?
-Based on the value of our products, we do not supply free sample,
if you need a sample for testing,
please kindly contact our sales for more details.
2.How long to deliver the products?
-The exact delivery date need to according to your model and
quantity. Usually within 5-7 working
days for sample after receive the payment and 15-20 working days
for mass production.
3.Do you offer guarantee for the products?
-Yes, we offer 2 years warranty our products, several item can be 3
years with extra costs
4.How to deal with the faulty products?
-Firstly, our products are produced in strict quality control
system and the defective rate will be less
than 1%.Secondly, during the guarantee period,we will send new
replacement with new order for small
quantity.. For defective batch products, we will repair them and
resend them to you or we can discuss
the solution including re-call according to real situatio.
