3W SS316L material park,lawn,plaza LED Ground Lights
UL Certification(PAR56 Pool lights), CE, ROHS, FCC,EMC, LVD,
IP68,VDE, ISO9001 certification
Shenzhen Heguang Lighting Co.,Ltd is a manufacture and high-tech
enterprise established in
2006-specialized in IP68 LED light (pool light,underwater
light,fountain light,etc),factory covers
around 2000㎡,3 assembly lines with the production capacity 50000
sets/month,we have the
independent R&D ability with professional OEM/ODM project
experience.

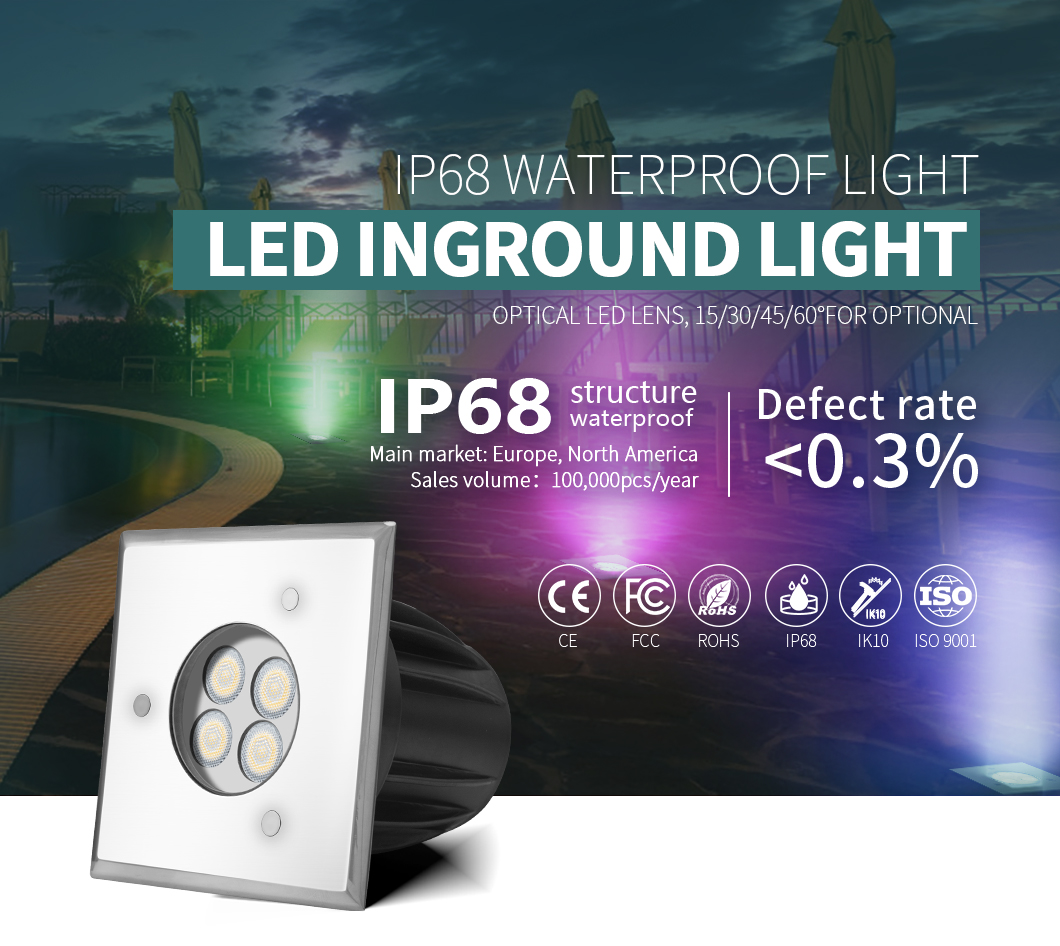

LED Ground Lights Features:
● SS316L material,lamp body thickness:0.8mm,surface ring
thickness:2.5 mm；
● Transparent tempered glass,thickness :8.0mm；
● VDE rubber cable ,cable length :1M;
● IP68 structure waterproof;
● Ground installation;
● Constant current driver circuit design,DC24V input power supply
● SMD3030 CREE LED,white/warm white/red/blue/red etc.
● Beam angle:15°/30°/45°/60°；
● 2 years warranty
| Model | HG-UL-3W-SMD-G2 |
| Electrical | Voltage | DC24V |
| Current | 170ma |
| Wattage | 3W±10% |
| LED | LED chip | SMD3030LED(CREE) |
| LED QTY | 4PCS |
| CCT | 6500K±10％/4300K±10％/3000K±10％ |
| Lumen | 300LM±10％ |
| Beam angle | 15°/30°/45°/60° |
| Light dimension | 100×100×88mm |
Heguang Honors:
ISO 9001,NATIONAL HIGH AND NEW TECHNOLOGY ENTERPRISE
>100 SETS PRIVATE MOULD,>60PCS TECHNOLOGY PATENTS
Heguang certification:ISO9001,TUV,CE,ROHS,FCC,IP68,IK10,UL,we are
the only one UL
certificated pool light supplier in China.
LED Ground Lights All passed 30 steps quality control , 100% waterproof at 10m depth,
8 hours LED
agening test,100% inspection before deliver.
Some tips for you
Why choose us?
1. Lower wattage with high Lumen and more energy-efficient.
2. All lamps are self-developed patent products.
3. IP68 structure waterproof without glue, and lamps disspate heat
through structure.
4.Your inquiry will be replied in 24hrs.
5. Well-trained and experienced staffs to answer all your enquiry
in fluent English
6. OEM&ODM, any your customized lighting we can help you to
design and put into product.
7. Distributorship are offered for your unique design and some our
current models
8. Protection of your sales area, ideas of design and all your
private information
