ERP 9W 3000K white light 24 Volt Low Voltage led Underwater Pond
Light
Product details
1. LED Color: White/Red/Green/Blue.
2. pool underwater led light use Cree Led Chip.
3. Private Mode products,Support ODM&OEM.
4. 316L Stainless steel material, super good anti-corrosion.
5. Jandy white led pool light use VDE standard outlet: standard
cable length is 1 meter.
| HG-UL-9W-SMD |
| Lamp paramater | Material | SS316L body+tempered glass cover+VDE rubber cable |
| length | Φ150×156.5mm |
| Input voltage | DC24V |
| Constant Driver | yes |
| Over-current Protection | yes |
| Wattage | 9W±10% |
| Light lumen | 850LM±10％ |
| Beam angle | 15°/30°/45°/60° |
| CCT | Pure White: 6500±10% Warm White:3000K±10% costomized |
|
| Wave Length (nm) | R: 620-630nm |
| G:515-525nm |
| B:460-470nm |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, RoHS,FCC,IP68,IK10 |
| Life-span | 50,000 hours |
| Warranty | 2Years |
| packing/ shipping | Lamp sizeInner box dimension | 160×160×110mm |
| N.W. / pc | 890g |
| G.W. / pc | 1020g |
| Carton dimension | 820×340×250mm |
| Qty. / ctn. | 20PCS/CTN |
| G.W. / ctn. | 21.66Kg |
| test Site | LED Underwater light (Min) |
| Ambient temperature 28℃ | Ambient temperature 40℃ |
| Underwater test lighting time(Min) | 10 | 30 | 90 | 150 | 10 | 30 | 90 | 150 |
| Light source edge temperature(℃) | 55 | 59 | 64 | 70 | 64 | 64 | 70 | 70 |

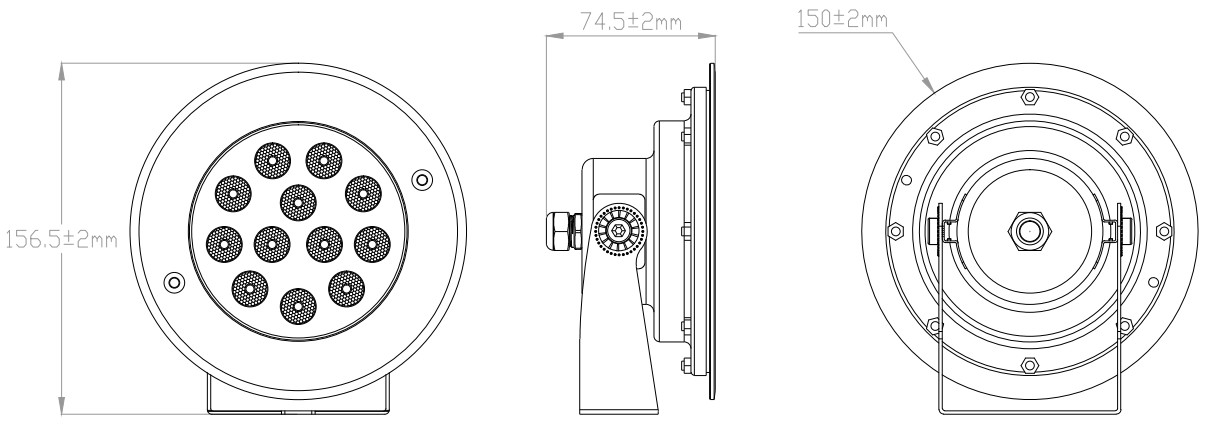

Product Size
LED underwater pool light all passed 30 steps quality control ,
100% waterproof at 10m depth,
8 hours LED agening test,100% inspection before deliver.
Application
(Conventional bracket) can be suitable for underwater bracket
fixing or (with clamp) water
pipe binding installation method, widely used in garden pool,
square pool, hotel pool, fountain
and other underwater lighting.
Packing List
| Item | HG-UL-9W-SMD |
| Product weight | 900G/PCS |
| color box size | 625×380×325mm |
| Carton/pcs | 50pcs/Carton |
| Carton size | 610x410x410mm |
| Carton weight | 28KG/CTN |
FAQ
1. Q: When can I get the price?
A: We usually quote within 24 hours after got your inquiry. If you
are urgent to get the prices,
please call us or tell us your email so that we will give priority
to your inquiry.
2. Q: Do you accept the OEM&ODM?
A: Yes,OEM or ODM service are available.
3. Q: May I get samples to test quality and how long can I get
them?
A: Yes, quote of sample is same as normal order and can be ready in
3-5 days.
4. Q: What is the MOQ?
A: NO MOQ ,the more you order ,the cheaper price you will get.
5. Q: Can you accept small trial order?
A: Yes, no matter large or small trial order, your needs will get
our full attention. It’s our great honor to cooperate with you.
